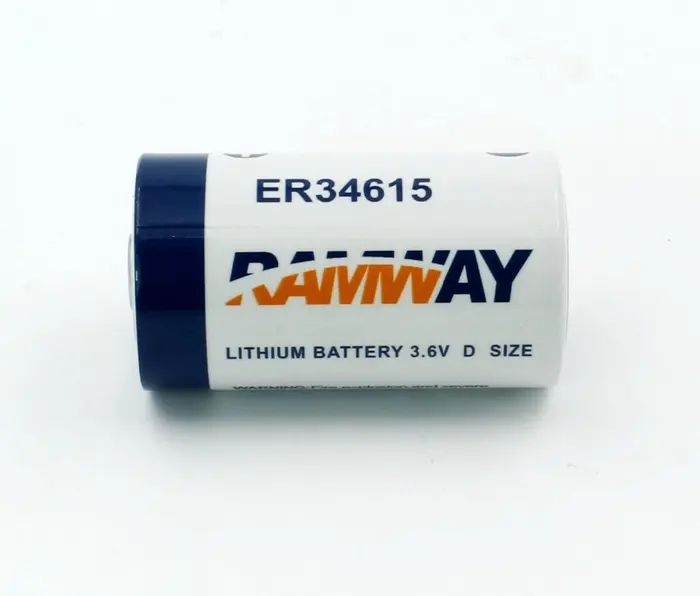

The Ramway ER34615 is a high-capacity 3.6V lithium-thionyl chloride (Li-SOCl₂) battery in a standard D-size cylindrical format. It is designed to deliver long-term, stable power for use in low to medium-drain applications requiring extended service life. With an exceptionally high energy density, wide operating temperature range, and ultra-low self-discharge, this battery is ideal for utility metering, tracking systems, security equipment, industrial control systems, and IoT devices where reliability is critical.
Brand:
| Specification | Details |
|---|---|
| Brand | Ramway |
| Model | ER34615 |
| Battery Type | Lithium Thionyl Chloride (Li-SOCl₂) |
| Nominal Voltage | 3.6 V |
| Nominal Capacity | 19,000 mAh |
| Max Continuous Current | Typically 150 mA |
| Max Pulse Current | Up to 400 mA |
| Self-Discharge Rate | ≤1% per year at 25°C |
| Shelf Life | 10–15 years |
| Operating Temperature | –55°C to +85°C |
| Dimensions | Approx. 34.2 mm (Diameter) × 61.5 mm (Length) |
| Weight | Approx. 100 grams |
| Terminal Options | Flat top, solder pins, axial leads, custom tabs |
| Applications | Utility meters, data loggers, GPS tracking, industrial automation, security systems, IoT devices |
