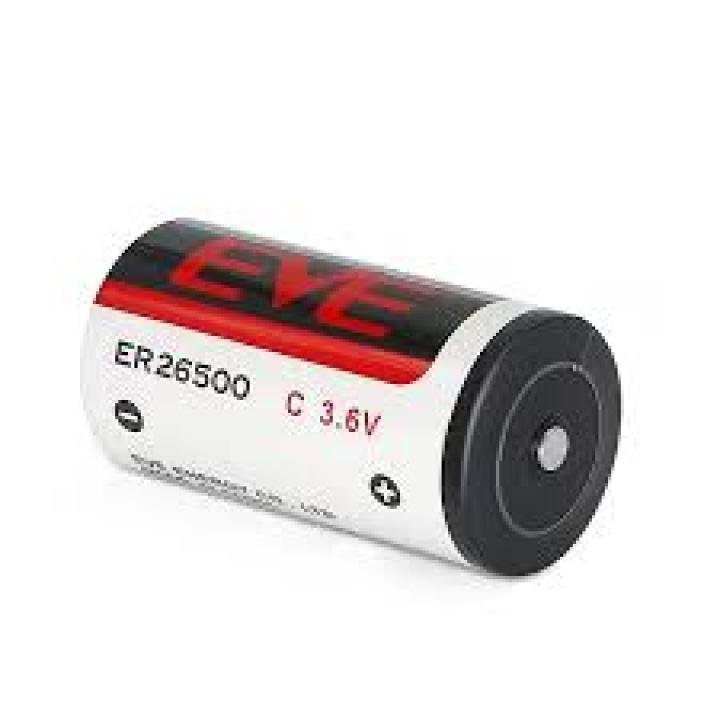

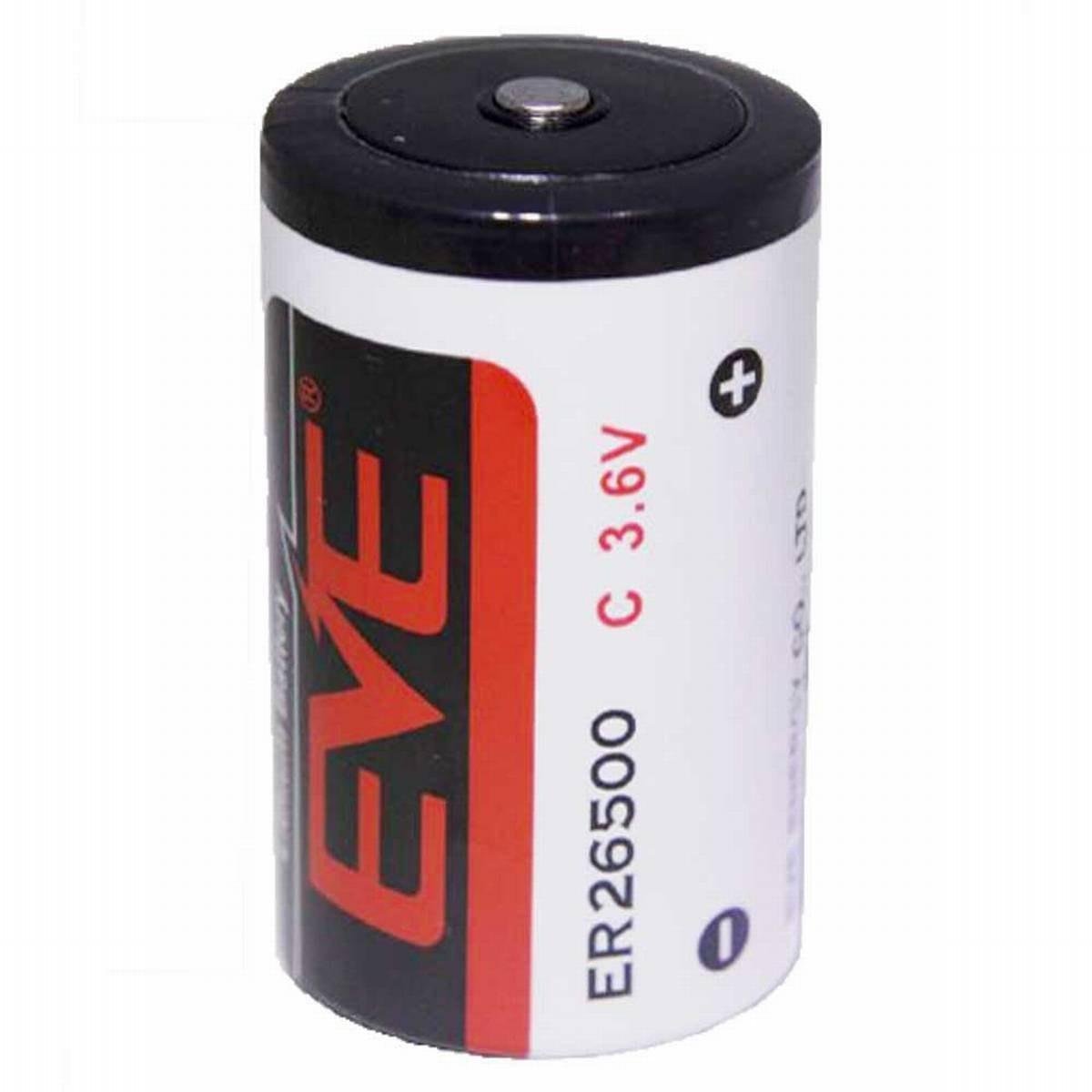

The EVE ER26500 is a high-capacity 3.6V lithium-thionyl chloride (Li-SOCl₂) battery in a standard C-size cylindrical form. It offers excellent energy density, stable voltage output, and an ultra-low self-discharge rate, making it ideal for long-term use in low-drain and pulse applications. This battery is widely used in utility metering, industrial automation, medical devices, security systems, and IoT applications that demand reliability and longevity over a wide temperature range.
| Specification | Details |
|---|---|
| Brand | EVE |
| Model | ER26500 |
| Battery Type | Lithium Thionyl Chloride (Li-SOCl₂) |
| Form Factor | C-size Cylindrical Cell |
| Nominal Voltage | 3.6 V |
| Nominal Capacity | 8500 mAh (typical) |
| Max Continuous Current | 150 mA |
| Max Pulse Current | Up to 300 mA |
| Operating Temperature | –55°C to +85°C |
| Shelf Life | Up to 10–15 years |
| Self-Discharge Rate | ≤1% per year at 25°C |
| Dimensions | Ø26.2 mm × 50.0 mm |
| Weight | Approx. 52 grams |
| Terminals | Flat top (standard); pins or axial leads (optional) |
| Applications | Utility meters, industrial controls, security systems, tracking devices, IoT sensors, medical electronics |
