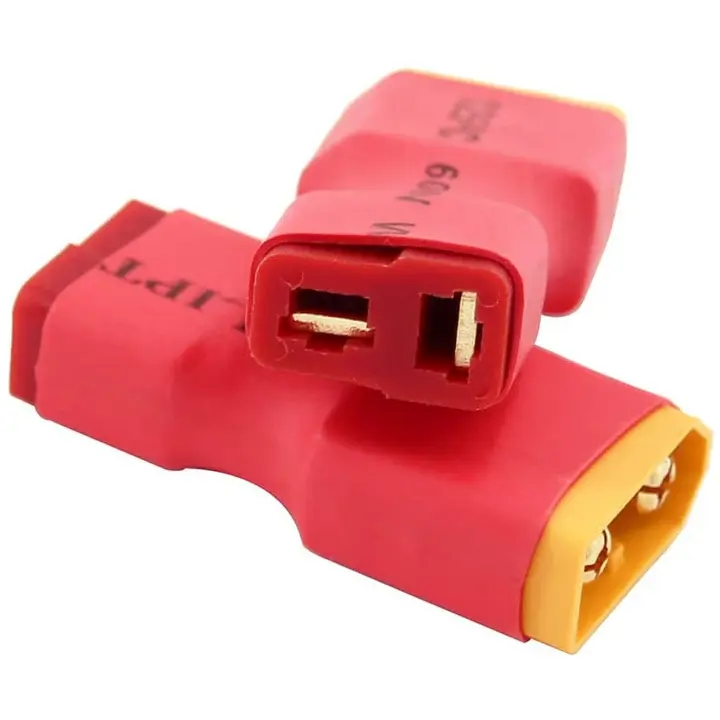

• Connector Type: XT60 Male to T-Plug Female
• Material: Nylon housing with gold-plated copper contacts
• Wire Type: 12AWG or 14AWG flexible silicone wire (model-dependent)
• Wire Length: Typically 10–15 cm
• Current Rating: Up to 60A (XT60) / 50A (T-Plug) continuous
• Voltage Rating: Up to 500V
• Temperature Range: -20°C to 120°C
• Dimensions:
  • XT60 Male Body Length: ~21 mm
  • XT60 Male Width: ~17 mm
  • XT60 Male Height: ~8 mm
  • T-Plug Female Body Length: ~22 mm
  • T-Plug Female Width: ~11 mm
  • Pin Diameter: ~3.5 mm (XT60), ~2.5 mm (T-Plug)

Features:

• Gold-plated contacts for high conductivity and minimal resistance
• Flexible silicone wire for easy routing and installation
• Durable nylon housing ensures mechanical and thermal reliability
• Ideal for safe, stable connections between XT60 batteries and T-Plug devices
