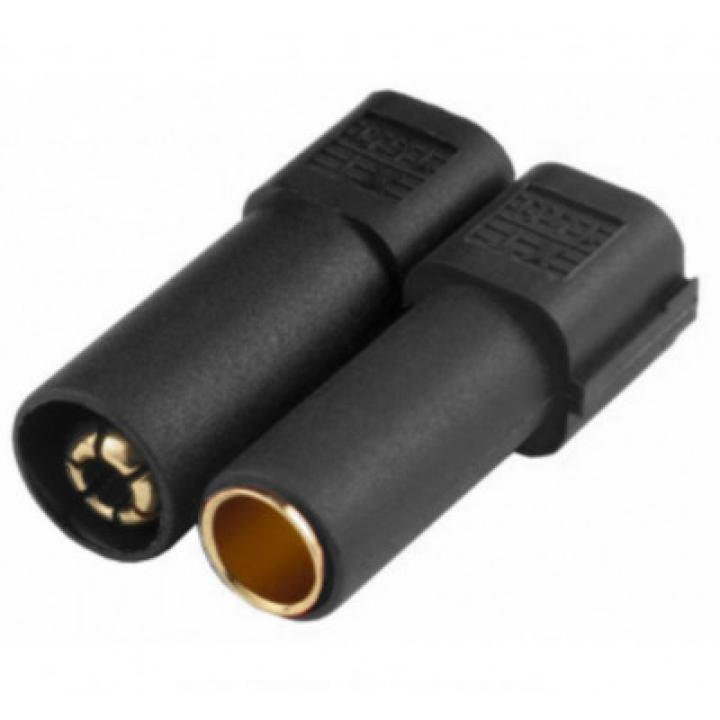

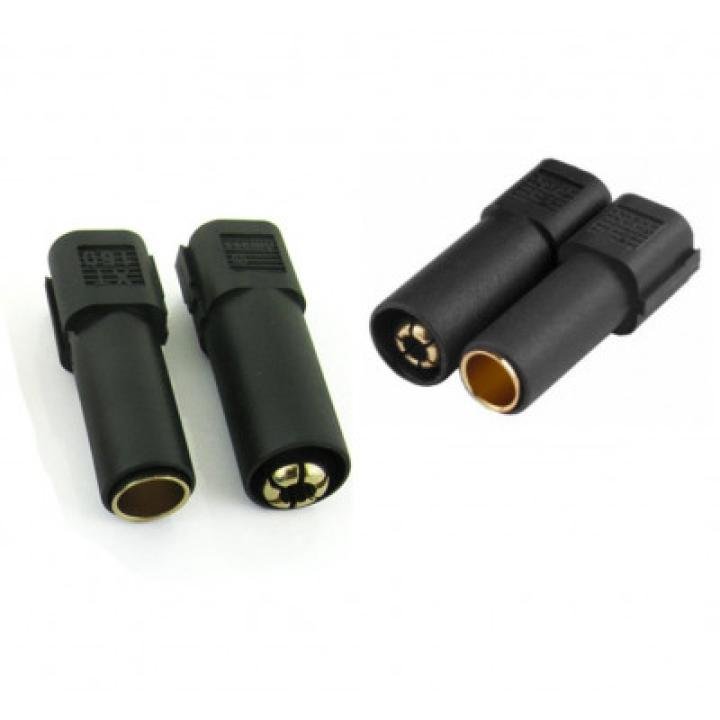

Name: XT150 Gold Plated Male and Female Connector with High Current 130Amp Max
SKU: BL-02-BS-7930
Price: 149 INR
Availability: InStock

XT150 Gold Plated Male and Female Connector with High Current 130Amp Max

0 Reviews

XT150 Gold Plated Male and Female Connector with High Current 130Amp Max

In stock

₹149.00

(Excluding IGST 18%)

The XT150 Gold Plated Male and Female Connector is designed for high-current applications, ensuring safe and efficient power transfer. Gold-plated contacts provide excellent conductivity, minimal resistance, and corrosion resistance. The durable nylon housing offers heat resistance and mechanical strength. This male-female connector pair is ideal for LiPo battery packs, RC vehicles, drones, and high-power electronic projects, supporting up to 130A max current.

SKU:

BL-02-BS-7930

Categories:

Battery Connectors

Connector Type: XT150 Male & Female Pair
Material (Contacts): Gold-plated copper
Housing Material: Heat-resistant Nylon
Rated Current: Max 130A
Rated Voltage: DC up to 500V
Contact Resistance: <0.5 mΩ
Temperature Range: -20°C to +120°C
Durability: Over 1000 mating cycles
Wire Compatibility: 10AWG – 12AWG
Applications: RC batteries, drones, electric vehicles, high-power DIY electronics

Dimensions (Approx.):

Connector Length: ~50mm
Width: ~25mm
Height: ~18mm
Contact Pin Diameter: ~8mm
