Name: T Style Male Connector with Insulating Cap
SKU: BL-02-BS-4845
Price: 28 INR
Availability: InStock

T Style Male Connector with Insulating Cap

0 Reviews

T Style Male Connector with Insulating Cap

In stock

₹28.00

(Excluding IGST 18%)

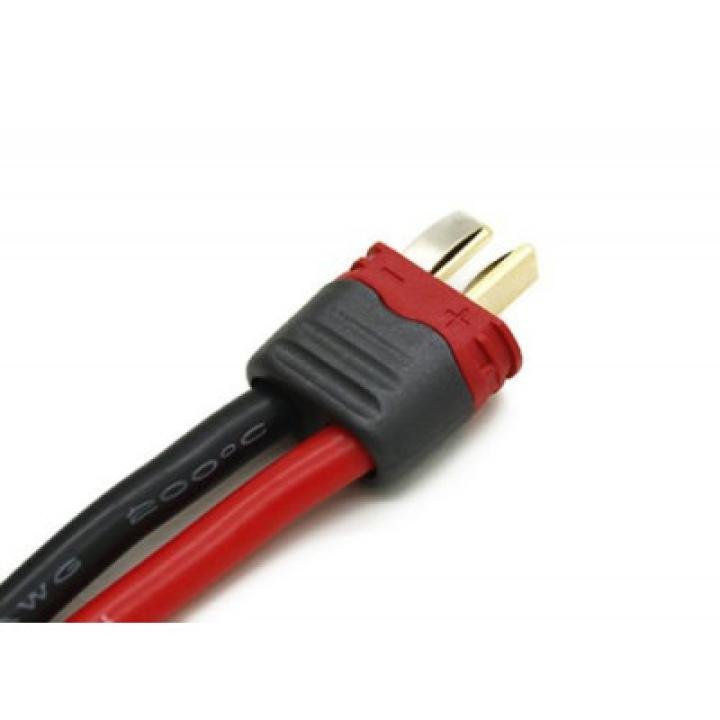

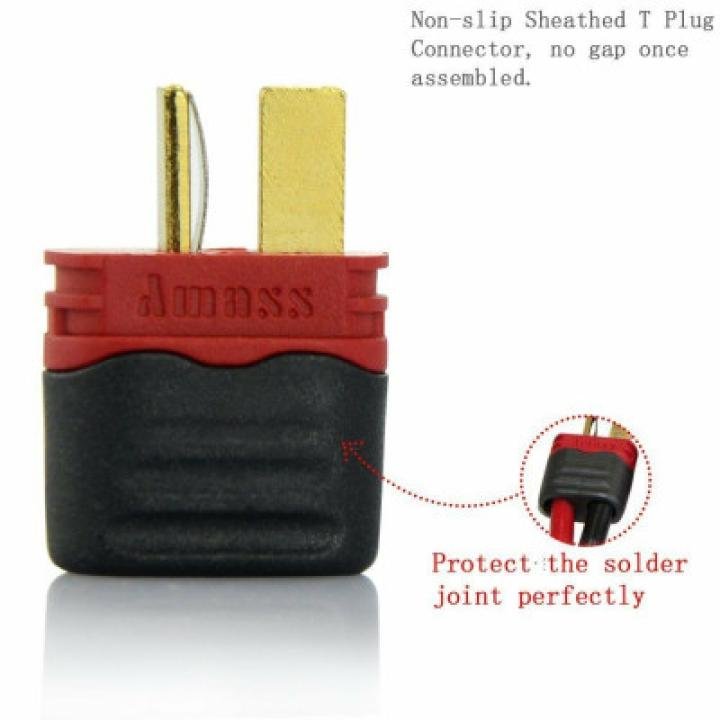

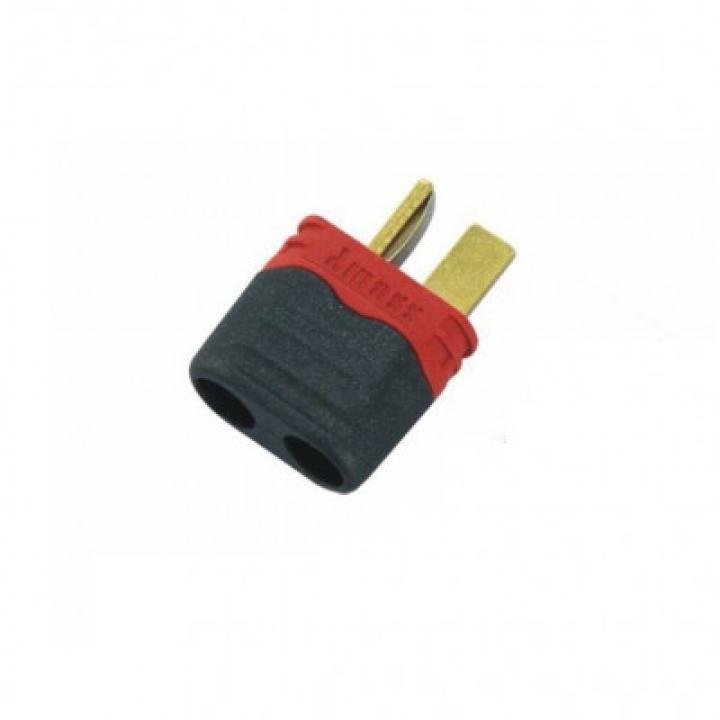

The T Style Male Connector with Insulating Cap is a high-quality, reliable connector designed for secure electrical connections in RC batteries, drones, ESCs, and DIY power projects. Built with durable nylon housing and gold-plated terminals, it ensures minimal resistance, excellent conductivity, and long service life. The insulating cap provides safety, preventing short circuits and enhancing secure fitting.

SKU:

BL-02-BS-4845

Categories:

Battery Connectors

Connector Type: T Style Male Connector with Insulating Cap
Material: Nylon housing with gold-plated copper contacts
Current Rating: Up to 65A (peak)
Voltage Rating: 500V DC max
Contact Resistance: <0.5mΩ
Wire Compatibility: Supports 12AWG–16AWG silicone wires
Durability: Over 1000 mating cycles
Applications: RC batteries, ESCs, drones, LiPo packs, DIY electronics

Dimensions:

Overall Length: ~20 mm
Width: ~15 mm
Height: ~8 mm
Wire Opening Diameter: ~4 mm
