Name: T Style Female Connector with Insulating Cap
SKU: BL-02-BS-3186
Price: 28 INR
Availability: InStock

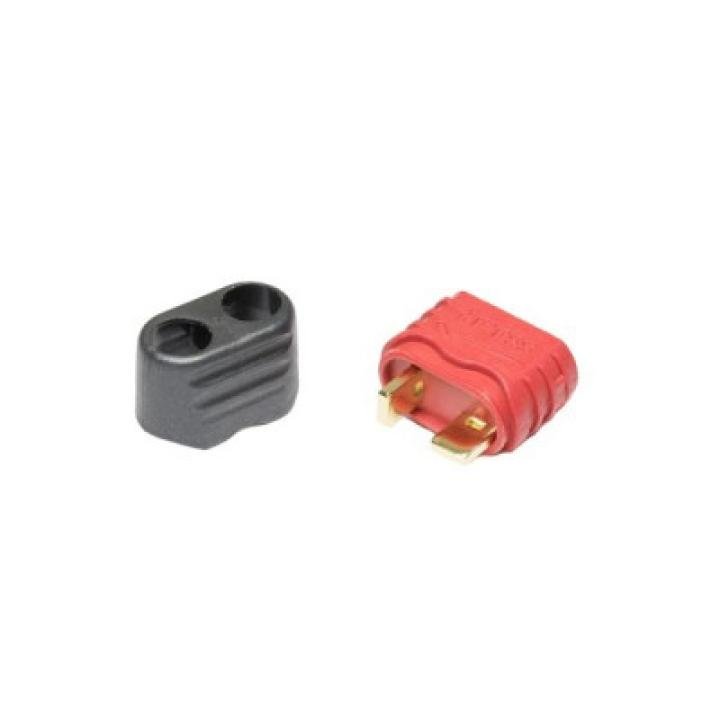

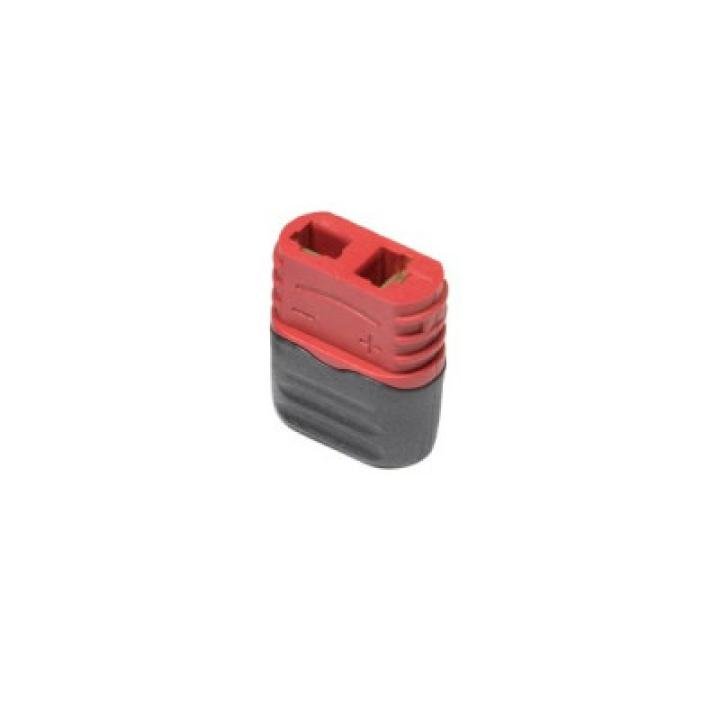

T Style Female Connector with Insulating Cap

0 Reviews

T Style Female Connector with Insulating Cap

In stock

₹28.00

(Excluding IGST 18%)

The T Style Female Connector with Insulating Cap is designed for high-current applications, offering a secure and low-resistance connection. Made from durable nylon material with gold-plated copper contacts, it ensures stable conductivity and heat resistance. The insulating cap provides extra protection against short circuits and safe handling. Commonly used in RC drones, batteries, ESCs, and DIY electronic projects.

SKU:

BL-02-BS-3186

Categories:

Battery Connectors

Connector Type: T Style Female Connector
Material (Housing): Heat-resistant Nylon
Contact Material: Gold-plated Copper
Rated Current: Up to 60A (depends on wire gauge)
Rated Voltage: DC up to 500V
Resistance: Very low contact resistance
Temperature Range: -20°C to +120°C
Safety Feature: Insulating cap for protection

📌 Dimensions (Approx.)

Connector Length: ~22 mm
Connector Width: ~15 mm
Connector Height: ~7 mm
Wire Compatibility: Supports 12AWG – 14AWG wires
