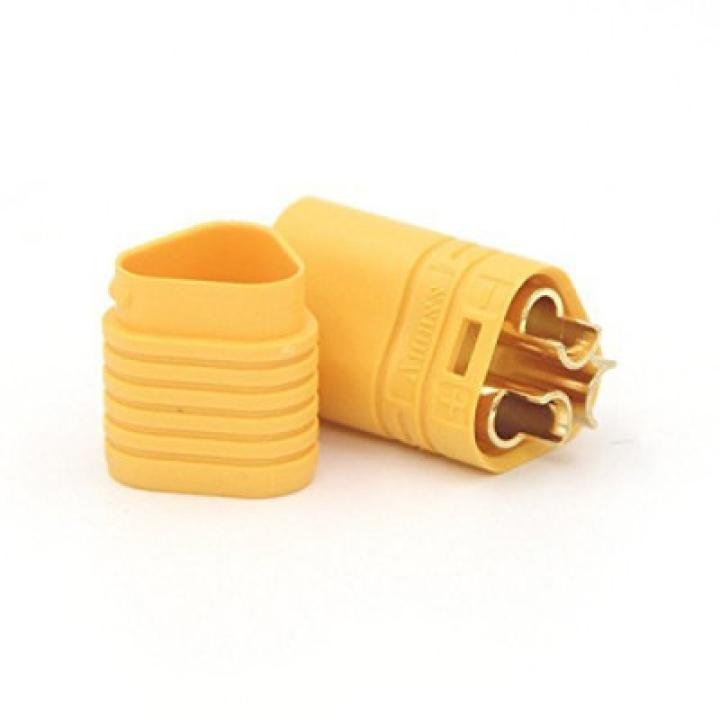

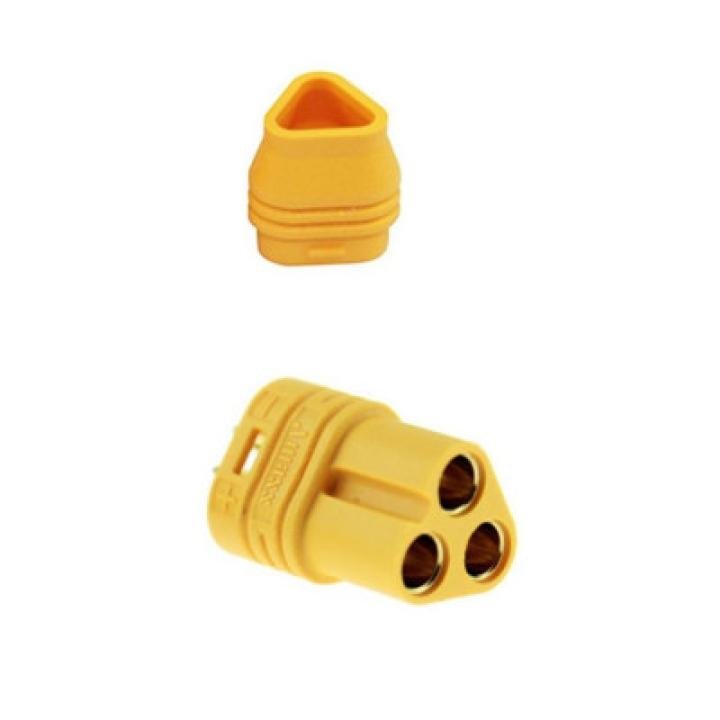

MT30 3 Pole Motor-ESC Connector Set Female - 1 PCs

In stock
₹52.00
(Excluding IGST 18%)

The MT30 3 Pole Motor-ESC Connector Set (Female) is a high-quality, compact connector designed for brushless motors and ESC connections. It ensures secure, reliable, and efficient current flow in drones, RC aircraft, and multirotors. The connector is easy to solder, durable, and features anti-reverse design for safe installation.

Estimated delivery:Feb 08 - Feb 12

SKU:

BL-02-BS-0838
  • Model: MT30 3 Pole Connector (Female)
  • Poles: 3-Pin (for Motor-ESC connection)
  • Current Rating: Up to 30A
  • Voltage Rating: 500V Max
  • Material: Nylon housing with gold-plated copper contacts
  • Wire Compatibility: Suitable for 16AWG – 18AWG wires
  • Temperature Range: -20°C to +120°C
  • Durability: > 1000 mating cycles
  • Application: RC Drones, Quadcopters, Multirotors, ESC to Motor connections

Dimensions:

  • Outer Diameter: 10mm (approx.)
  • Length: 25mm (approx.)
  • Pin Diameter: 3.5mm gold-plated bullet pins
  • Wire Soldering Hole: 3mm
