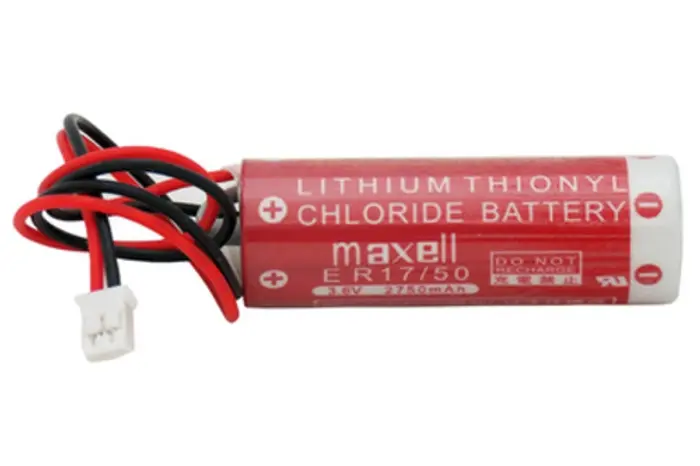

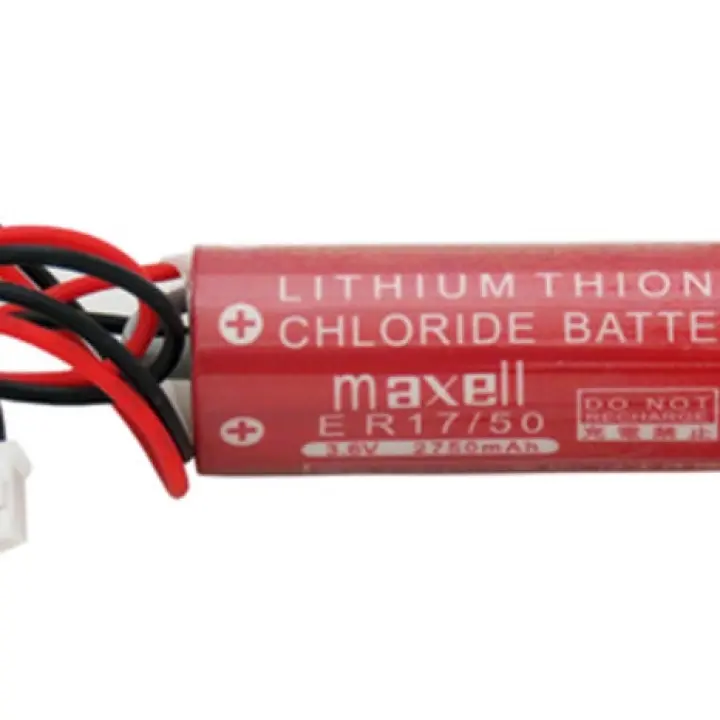

The Maxell ER17/50 is a primary (non‑rechargeable) lithium thionyl chloride (Li‑SOCl₂) cell. It’s built for long‑duration, low‑drain applications that demand stability, high energy density, and exceptional operating life — even in extreme temperatures. The 2‑pin white connector version allows easy installation into compatible equipment without soldering.
Common uses include:
Categories:
Coin and Button Cell| Attribute | Value |
|---|---|
| Battery Type | Primary Lithium Thionyl Chloride (Li‑SOCl₂) |
| Nominal Voltage | 3.6 V |
| Nominal Capacity | ~2,750 mAh |
| Diameter | ~17 mm |
| Length | ~50 mm |
| Weight | ~25 g |
| Operating Temp. | −55 °C to +85 °C |
| Shelf Life | Up to 10+ years (low self‑discharge, ≈1% per year) |
| Continuous Drain | Typically ≤3 mA (can supply short higher pulse currents) |
| Connector | 2‑pin white plastic plug (varies by device OEM spec) |
| IEC Code | ER17500 / ER17/50 |
