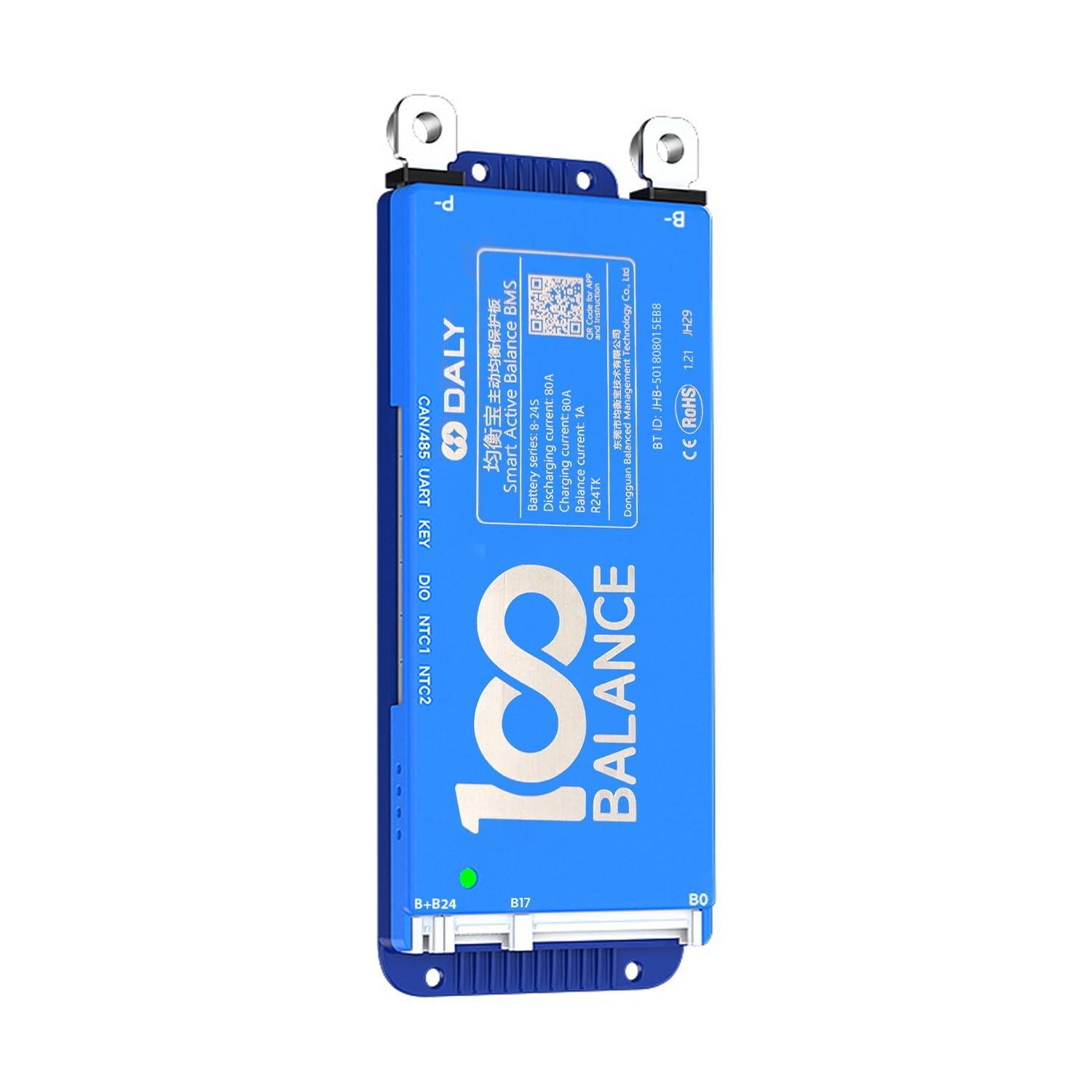

The DALY100 Balance 8S–24S 80A Smart BMS is a robust and intelligent Battery Management System designed for large lithium battery packs with 8 to 24 cells in series. Supporting up to 80A continuous discharge current, it is ideal for high-power applications such as electric vehicles, solar energy storage, and industrial battery systems. Featuring 1A active balancing to maintain optimal cell voltage balance, the BMS maximizes battery efficiency and lifespan. Integrated Bluetooth connectivity allows real-time monitoring and configuration through the 100BALANCE mobile app, ensuring safe and reliable battery management.
Categories:
Battery Management System (BMS)| Parameter | Specification |
|---|---|
| Battery Chemistry | Li-ion, LiFePO4 (LFP), LTO |
| Series Supported | 8S to 24S |
| Nominal Voltage Range | Approx. 25.6V to 86.4V |
| Continuous Discharge Current | 80A |
| Continuous Charge Current | 40A – 60A (model dependent) |
| Balance Type | Active Balancing |
| Balance Current | Up to 1A |

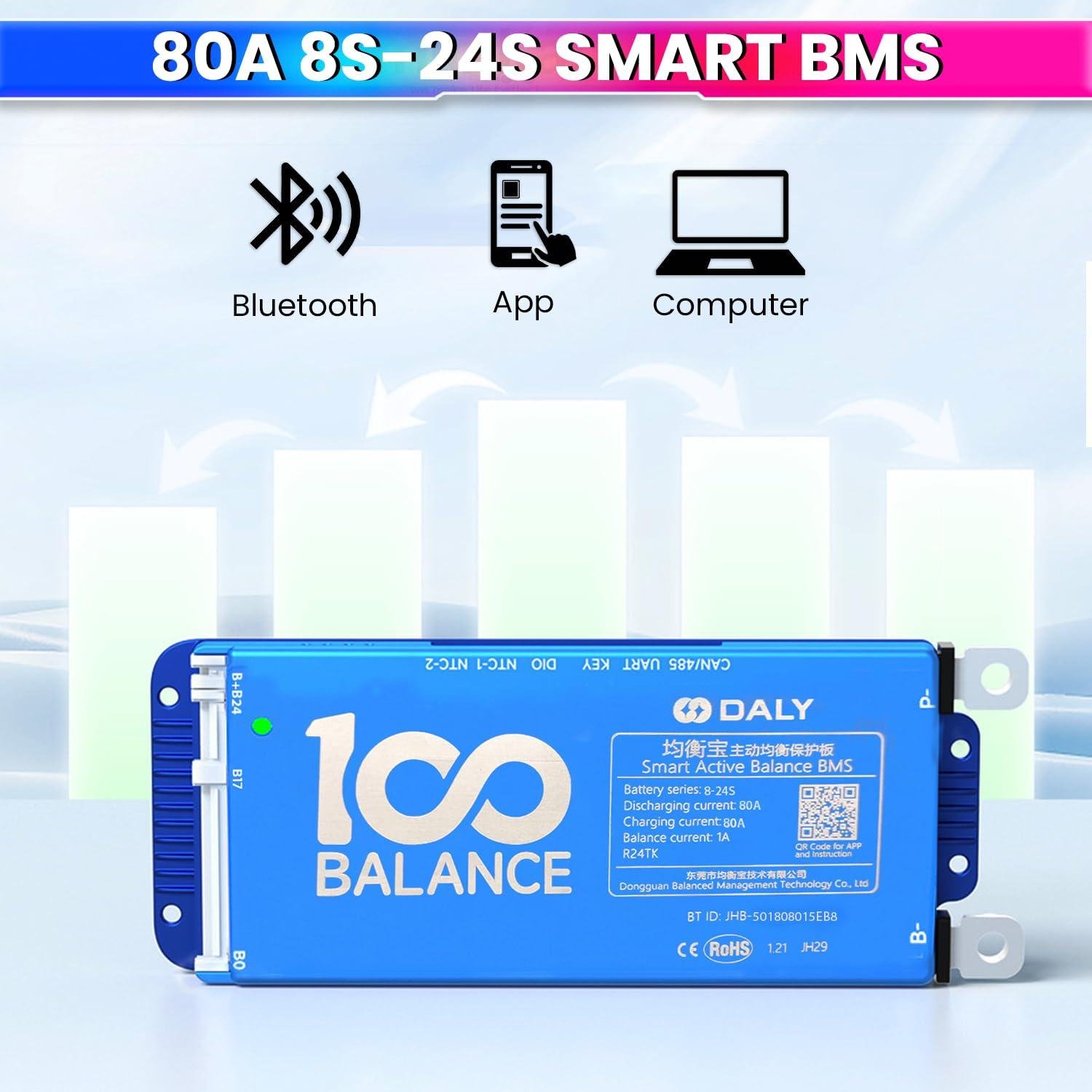

| Bluetooth | Built-in, compatible with 100BALANCE mobile app |
| Voltage Accuracy | ±10mV |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +125°C |
| Standby Current | < 50μA |
| Dimensions | Approx. 140mm × 80mm × 20mm |
| Protections Included | Overcharge, Over-discharge, Overcurrent, Short Circuit, Temperature |
| Firmware Update | Supported on some models via app |
