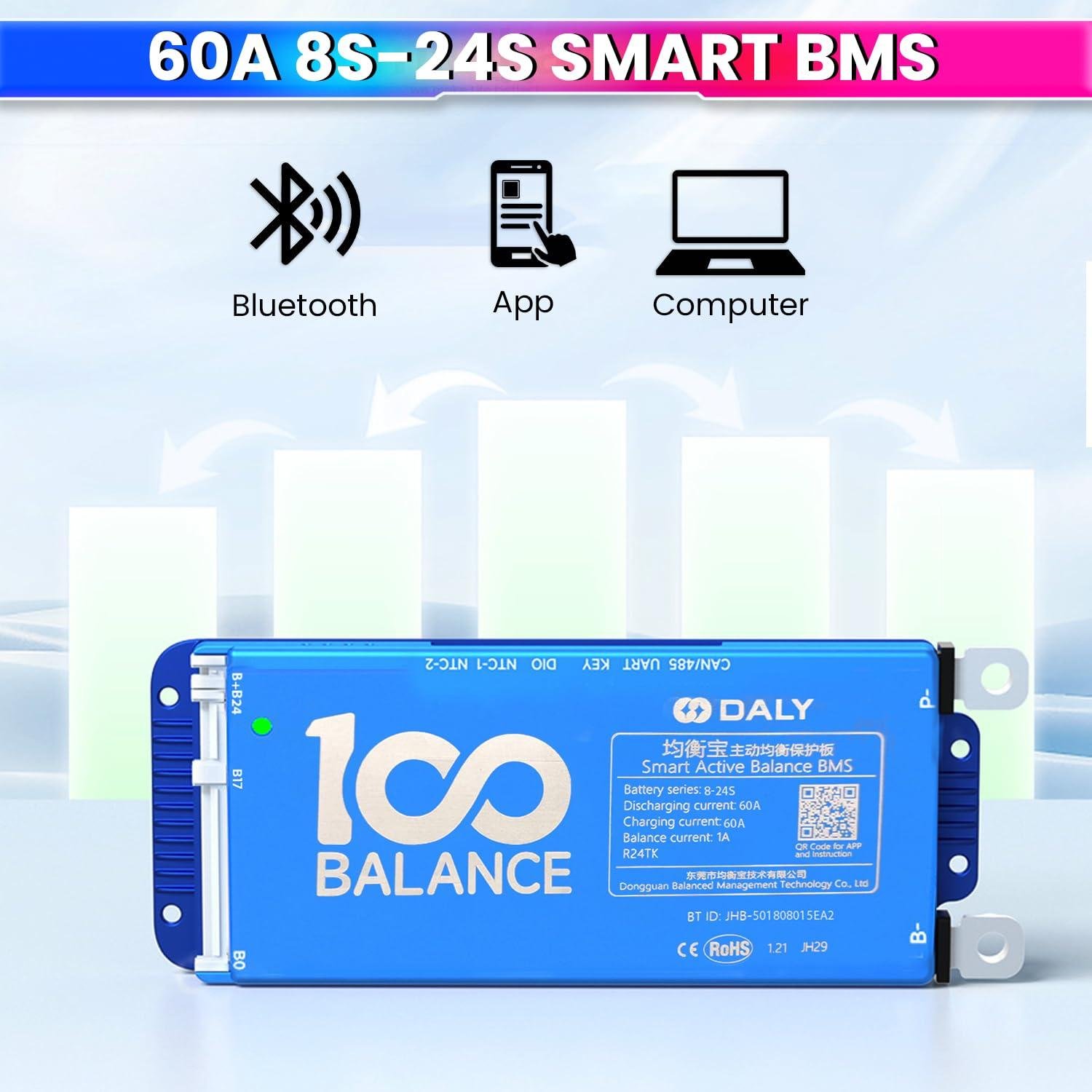

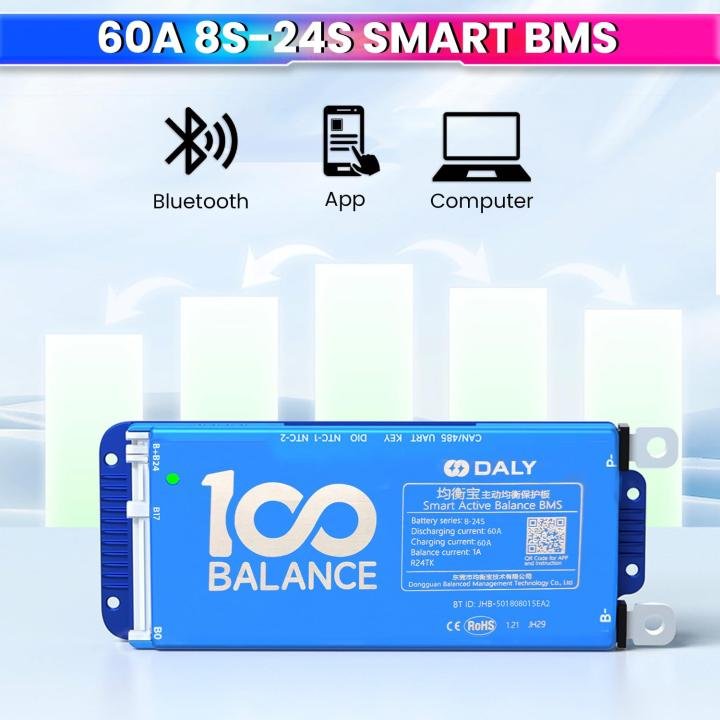

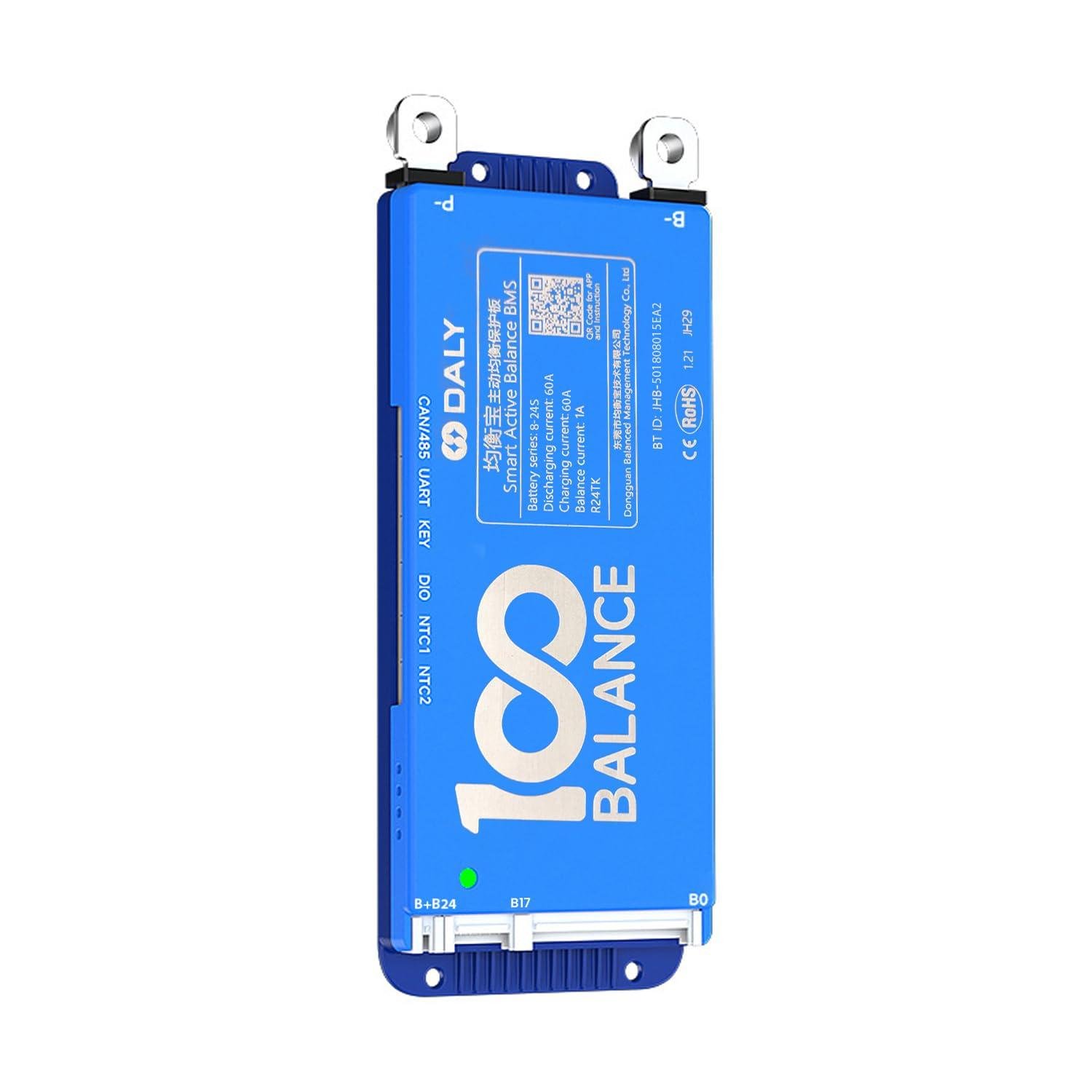

The DALY100 Balance 8S–24S 60A Smart BMS is a powerful and intelligent Battery Management System designed for lithium battery packs with 8 to 24 series cells. It supports 60A continuous discharge current, making it suitable for applications like electric vehicles, solar energy storage, and industrial battery systems. With built-in 1A active balancing, it ensures optimal voltage consistency across cells, improving performance and extending battery lifespan. The integrated Bluetooth module allows users to monitor and configure the BMS in real time through the 100BALANCE mobile app, ensuring safety and ease of use.
Categories:
Battery Management System (BMS)| Parameter | Specification |
|---|---|
| Battery Type | Li-ion / LiFePO4 (LFP) / LTO |
| Series Support | 8S to 24S |
| Nominal Voltage Range | 25.6V to 86.4V (depending on cell chemistry) |
| Continuous Discharge Current | 60A |
| Charge Current | 30A – 40A (depending on version) |
| Balance Type | Active Balancing |
| Balance Current | Up to 1A per cell |

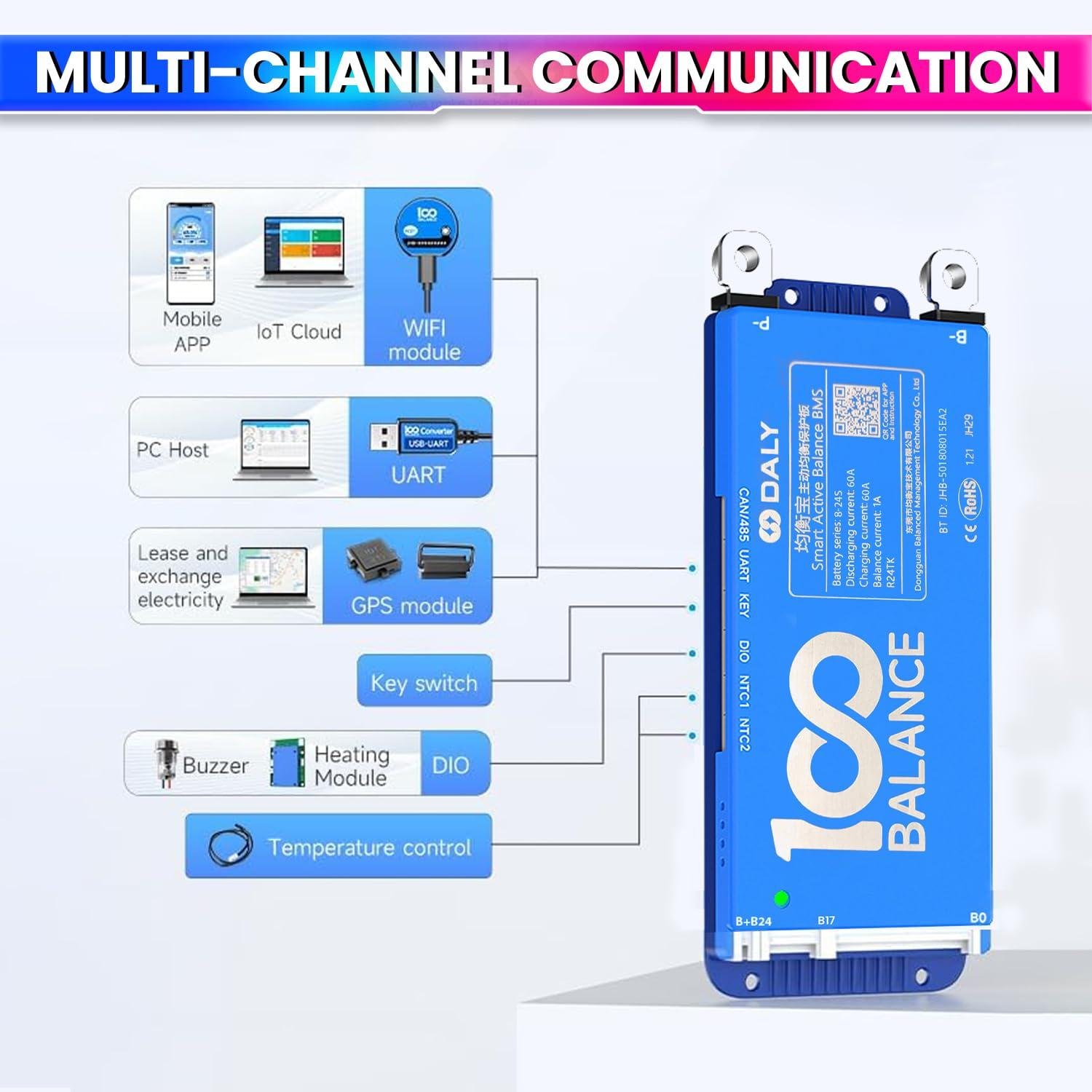

| Bluetooth | Built-in, works with 100BALANCE app (Android/iOS) |
| Voltage Detection Accuracy | ±10mV |
| Temperature Sensors | Yes (typically 2 integrated sensors) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +125°C |
| Standby Power Consumption | < 50μA |
| Board Dimensions | Approx. 140mm × 80mm × 20mm (varies slightly by version) |

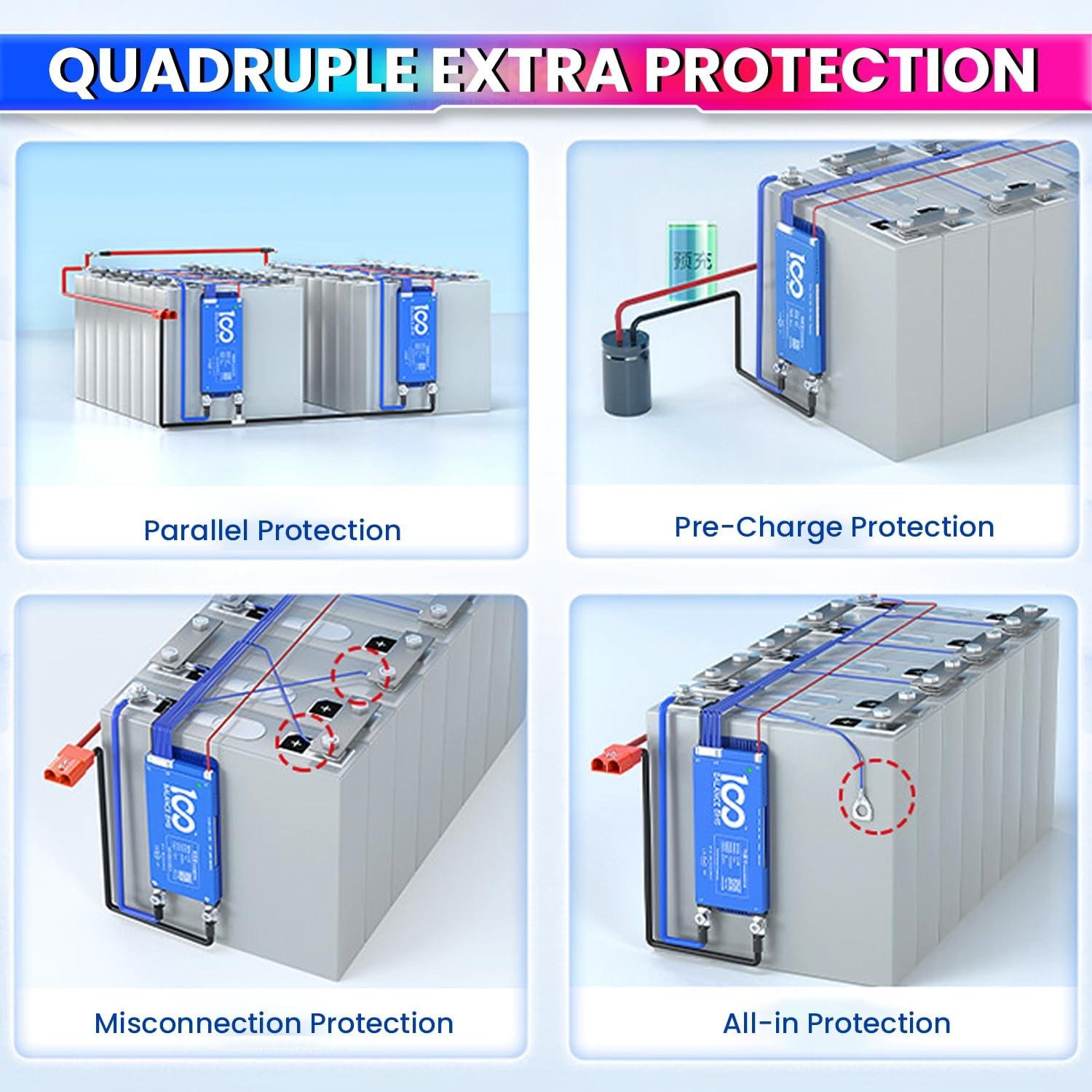

| Protection Functions | Overcharge, Over-discharge, Overcurrent, Short Circuit, Thermal |
| Wiring | Includes balance cable harness and main terminal connections |
| Firmware Update | Supported (model-dependent) |
