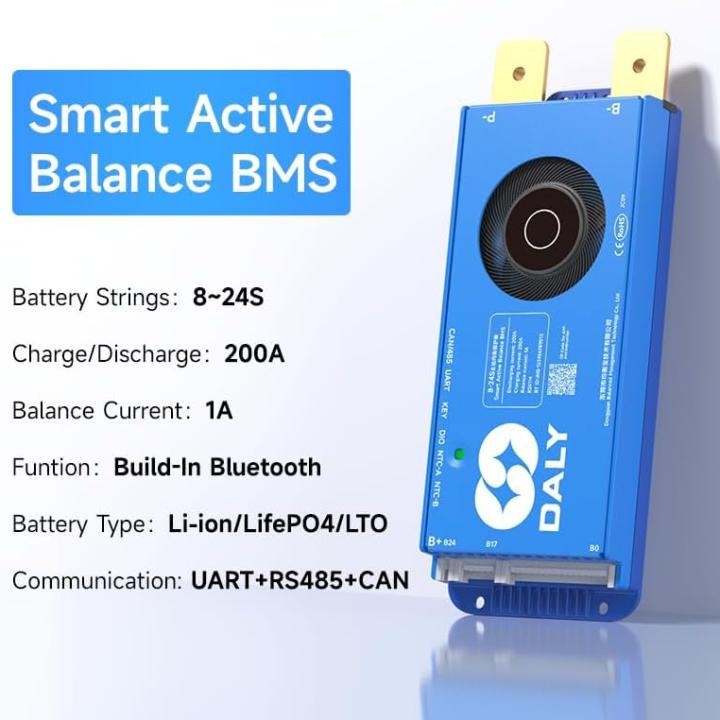

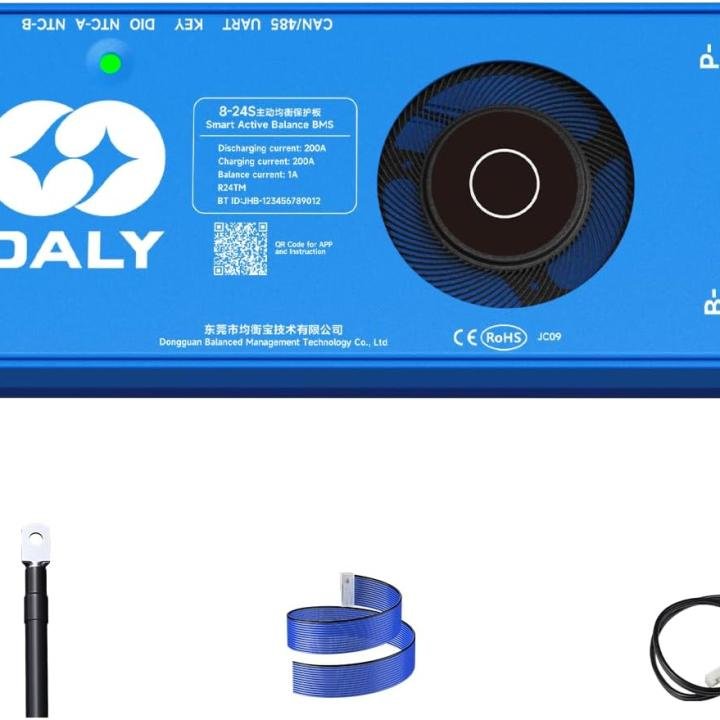

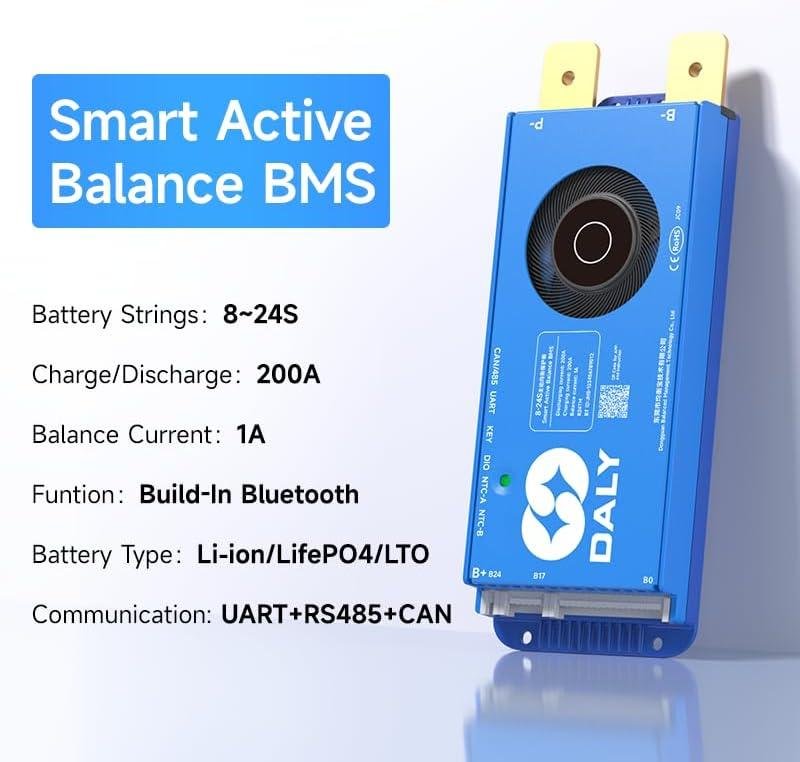

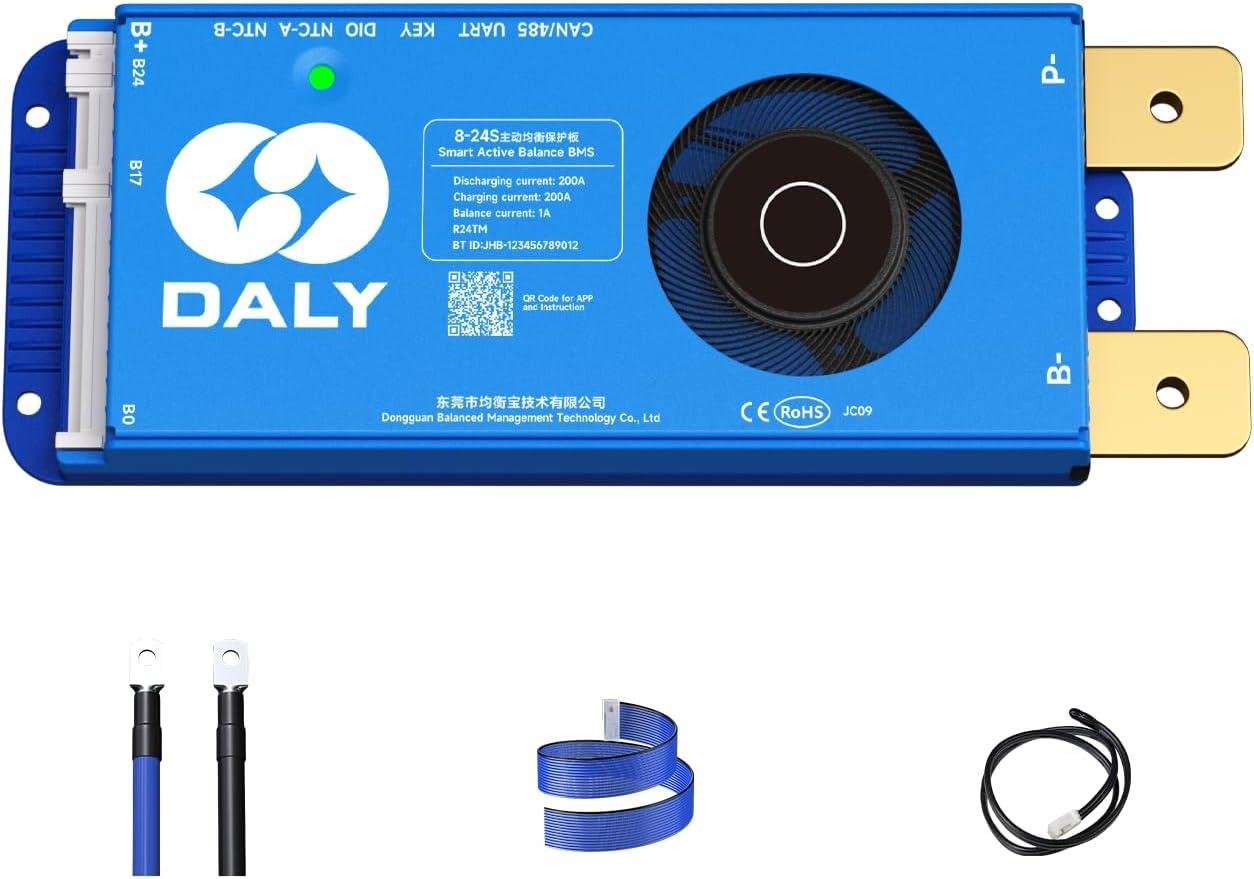

The DALY100 Balance 8S–24S 200A Smart BMS is a high-current, smart Battery Management System designed for large and demanding lithium battery packs used in electric vehicles, solar storage, power walls, and industrial energy systems. It supports 8 to 24 series cells and delivers up to 200A continuous discharge current, making it ideal for applications requiring high power output. Featuring 1A active balancing, it equalizes cell voltages for improved performance and battery health. With built-in Bluetooth, users can monitor real-time battery data and adjust settings through the 100BALANCE mobile app, ensuring safety, control, and efficiency.
Categories:
Battery Management System (BMS)| Parameter | Specification |
|---|---|
| Battery Compatibility | Li-ion, LiFePO4 (LFP), LTO |
| Series Support | 8S to 24S |
| Nominal Voltage Range | 25.6V – 86.4V (depending on chemistry and configuration) |
| Continuous Discharge Current | 200A |
| Continuous Charge Current | 100A (model-dependent) |
| Balance Type | Active Balancing |
| Balance Current | Up to 1A per cell |
| Bluetooth Communication | Built-in Bluetooth module |
| Mobile App | 100BALANCE (Android & iOS) |
| Voltage Accuracy | ±10mV |
| Temperature Sensors | Included (typically 2) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +125°C |
| Standby Power Consumption | < 50μA |
| Dimensions | Approx. 150mm × 85mm × 25mm (varies by version) |
| Wiring | Includes balance cable and main discharge/charge terminals |
| Firmware Updatable | Supported on some models via app or USB (check with seller) |
| Protection Functions | Overvoltage, Undervoltage, Overcurrent, Short Circuit, Temperature |
