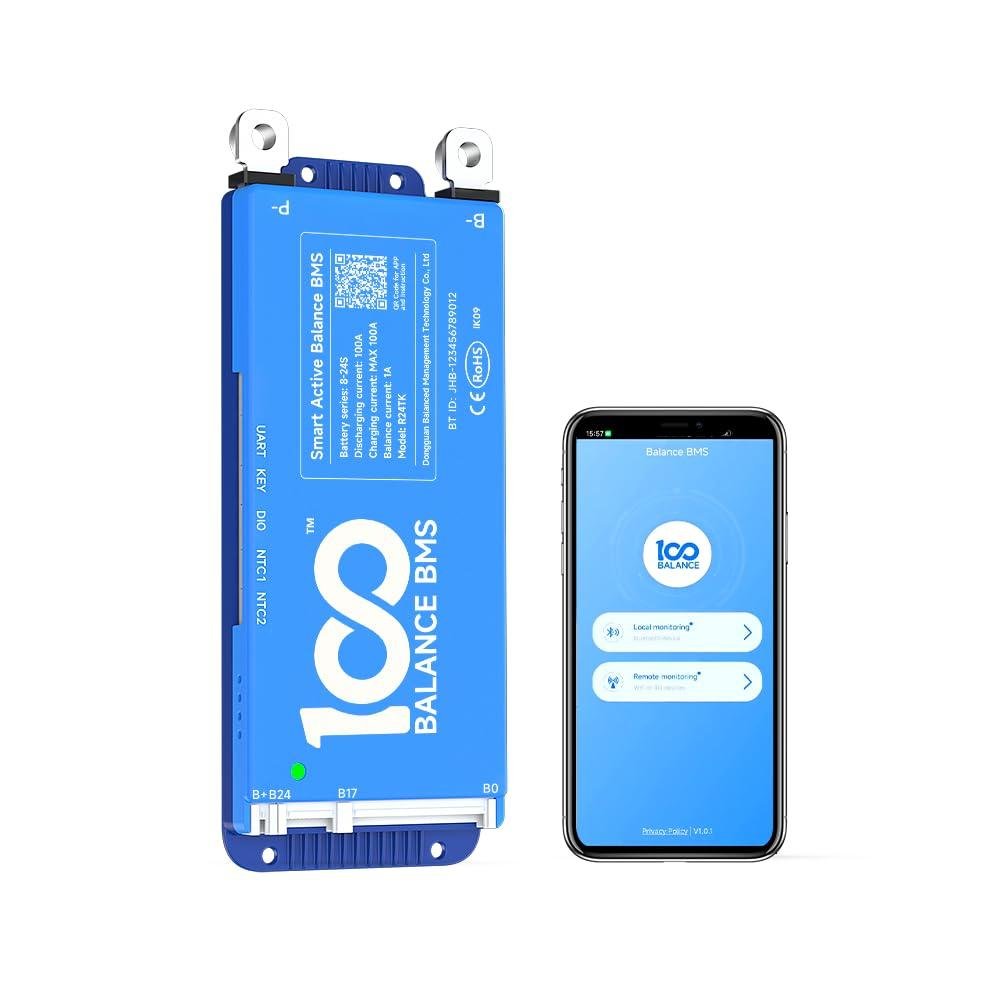

The DALY100 Balance 8S–24S 100A Smart BMS is a high-performance Battery Management System designed for large lithium battery packs in electric vehicles, solar storage systems, energy storage, and industrial power solutions. Supporting 8 to 24 series cells, it delivers 100A continuous discharge current, making it suitable for high-power applications. With 1A active balancing, it automatically equalizes cell voltages for better efficiency and extended battery life. Integrated Bluetooth allows wireless monitoring and configuration using the 100BALANCE mobile app, giving users full control over system performance and safety.
Categories:
Battery Management System (BMS)| Parameter | Specification |
|---|---|
| Battery Type | Li-ion, LiFePO4 (LFP), LTO |
| Cell Series Support | 8S to 24S |
| Nominal Voltage Range | 25.6V to 86.4V (depends on cell chemistry and configuration) |
| Continuous Discharge Current | 100A |
| Continuous Charge Current | 50A – 60A (model-dependent) |
| Balance Type | Active Balancing |
| Balance Current | Up to 1A per cell |

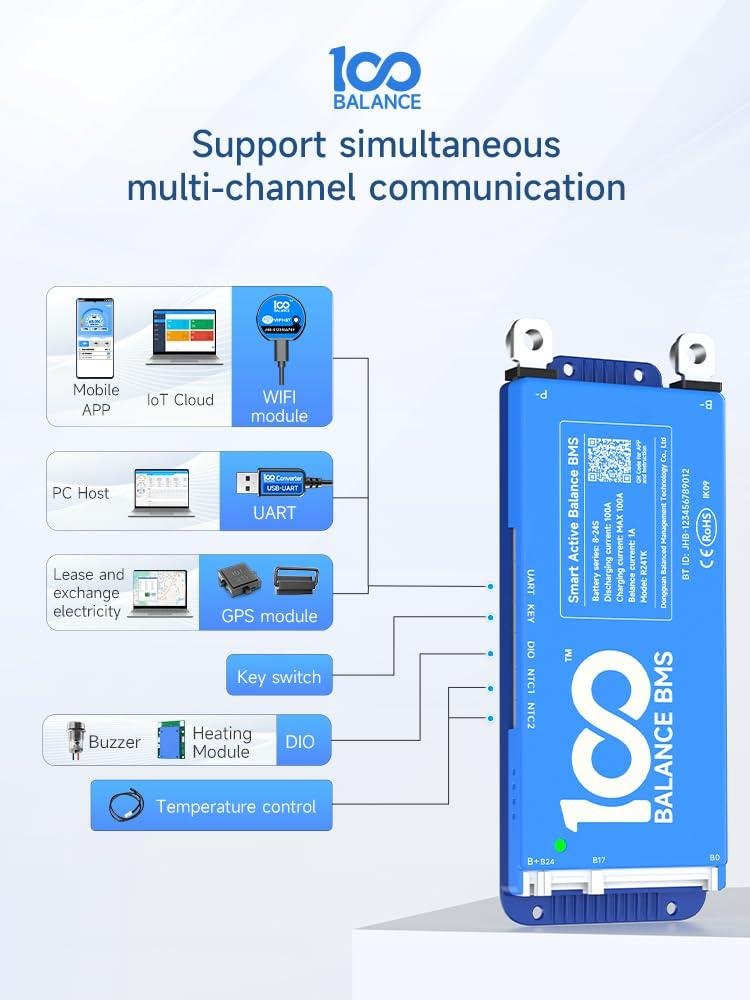

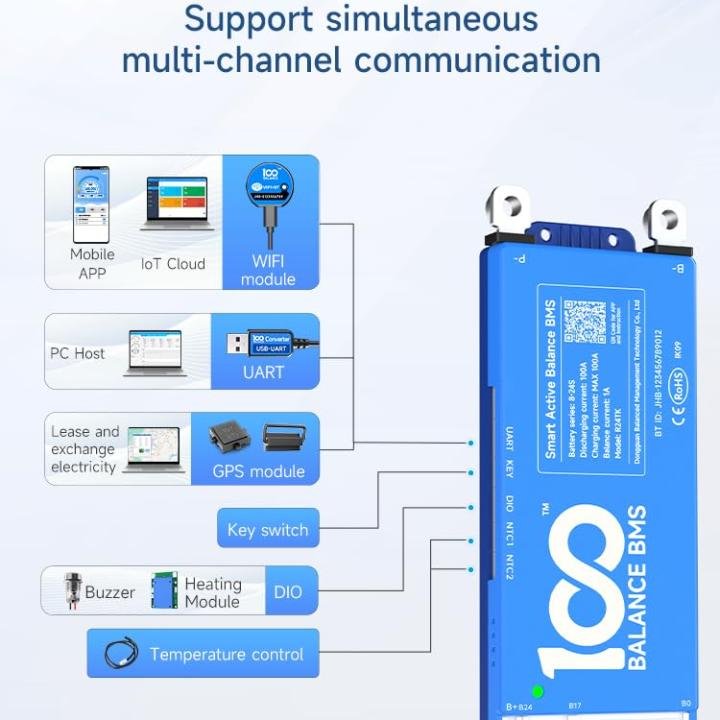

| Bluetooth Communication | Built-in (via 100BALANCE mobile app) |
| Voltage Detection Accuracy | ±10mV |
| Temperature Sensors | Yes, typically 2 sensors |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +125°C |
| Standby Power Consumption | < 50μA |

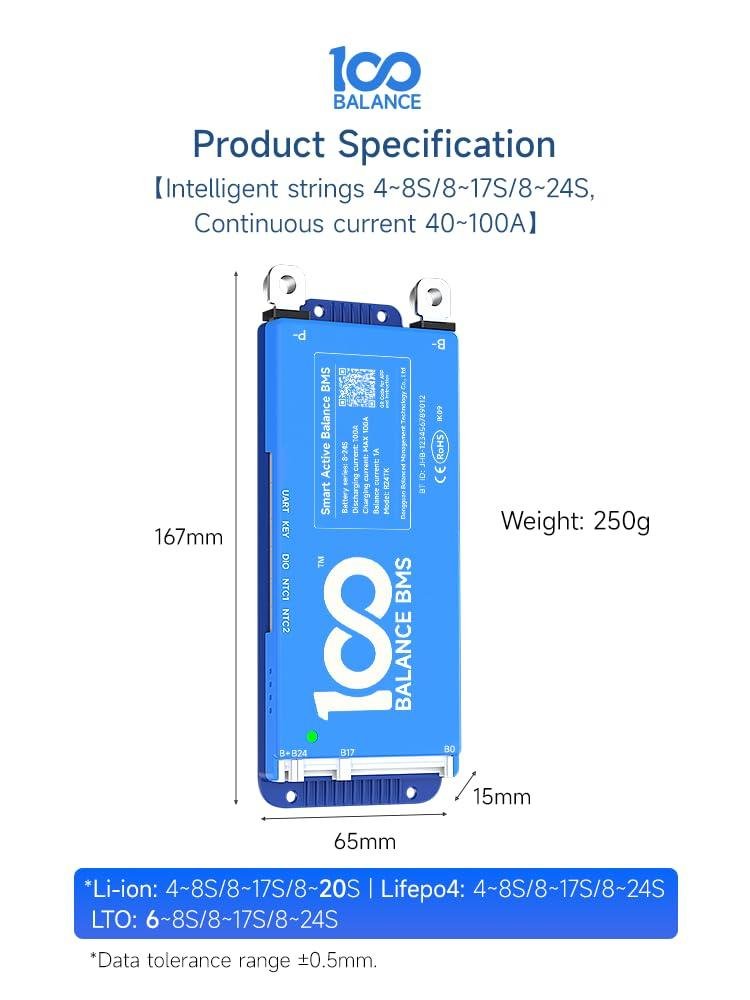

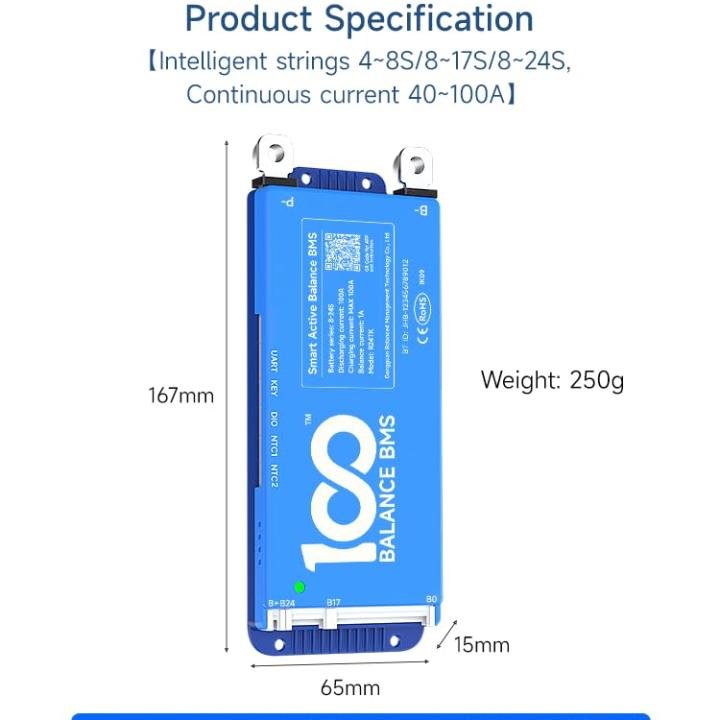

| Board Dimensions | Approx. 140mm × 80mm × 20mm (may vary slightly) |
| Protection Features | Overcharge, Over-discharge, Overcurrent, Short Circuit, Temperature |

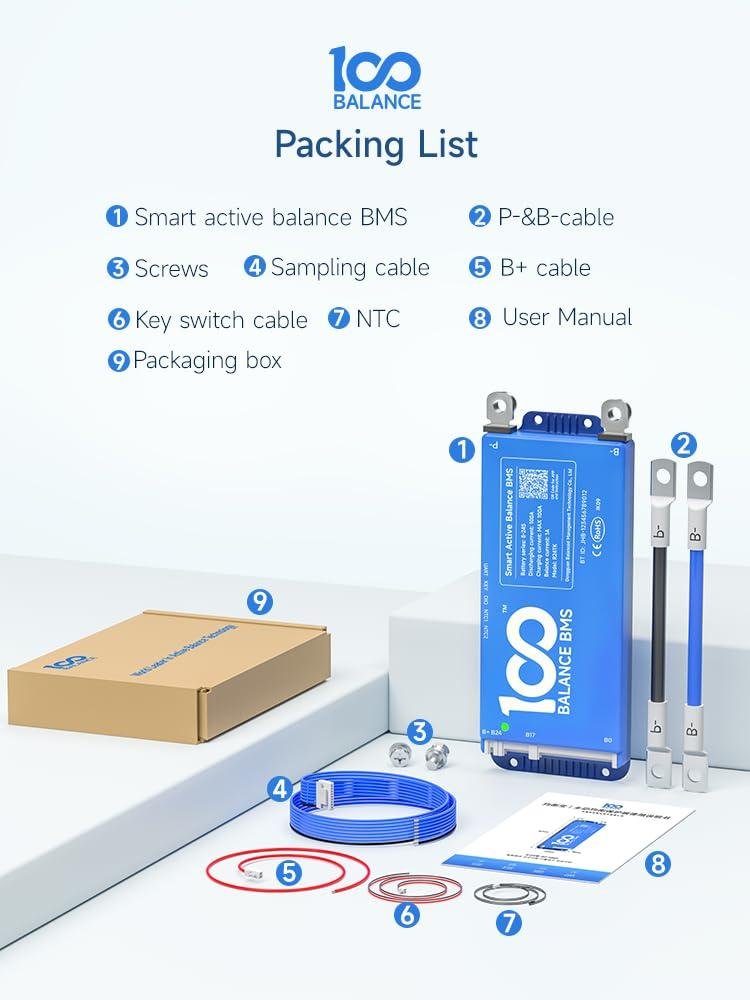

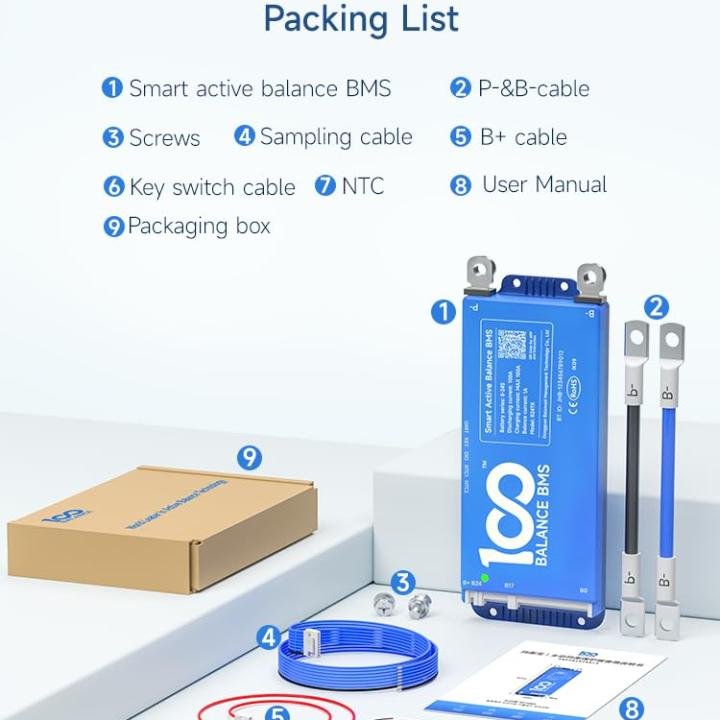

| Wiring | Balance lead connector + discharge/charge terminals included |
| Firmware Update | Supported (check model version) |
