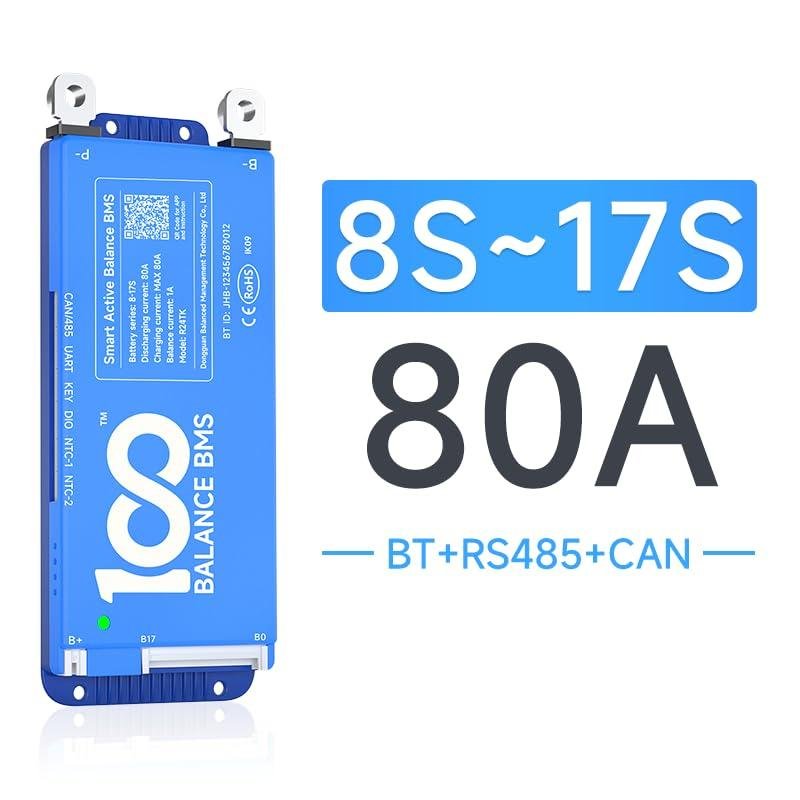

The DALY100 Balance 8S–17S 80A Smart BMS is an advanced Battery Management System engineered for lithium battery packs ranging from 8 to 17 series cells. Ideal for Li-ion, LiFePO4 (LFP), and LTO chemistries, it offers 80A continuous discharge current for medium to high-power systems like e-bikes, solar storage systems, electric vehicles, and power walls. Featuring 1A active balancing, it ensures equal charge distribution between cells, maximizing battery efficiency and lifespan. With built-in Bluetooth connectivity, the system can be monitored and configured in real-time through the 100BALANCE mobile app, giving users full control over safety and performance.
Brand:
Categories:
Battery Management System (BMS)| Parameter | Specification |
|---|---|
| Battery Types Supported | Li-ion / LiFePO4 (LFP) / LTO |
| Series Configuration | 8S to 17S |
| Nominal Voltage Range | ~25.6V to 61.2V (depending on cell type) |
| Continuous Discharge Current | 80A |
| Charge Current | 40A – 50A (depending on version) |
| Balance Type | Active Balancing |
| Balance Current | Up to 1A per cell |
| Bluetooth | Built-in (works with 100BALANCE app on Android/iOS) |
| Voltage Accuracy | ±10mV |
| Temperature Sensors | 2x NTC probes included |
| Operating Temp. Range | -20°C to +70°C |
| Storage Temperature | -40°C to +125°C |
| Standby Current Draw | < 50μA |
| Board Dimensions | Approx. 145mm × 85mm × 25mm (model dependent) |
| Protection Functions | Overvoltage, Undervoltage, Overcurrent, Short Circuit, Temperature |
