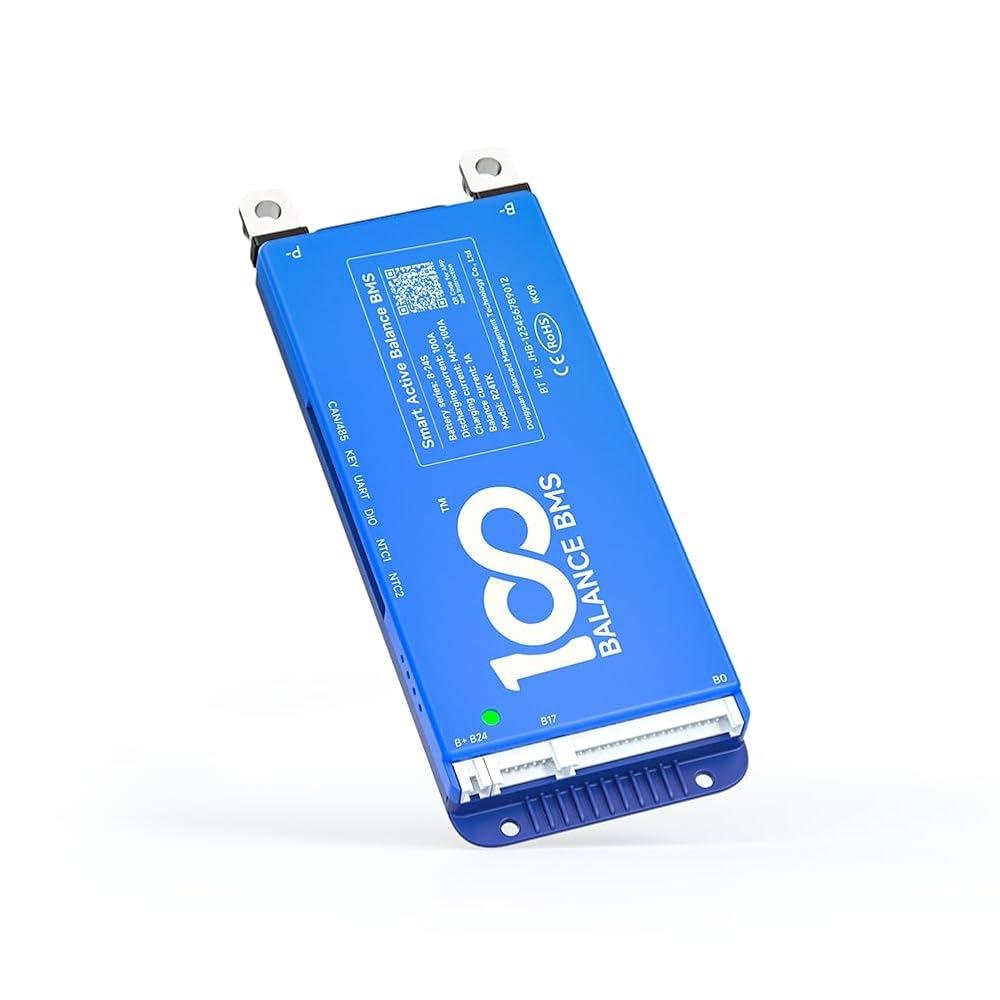

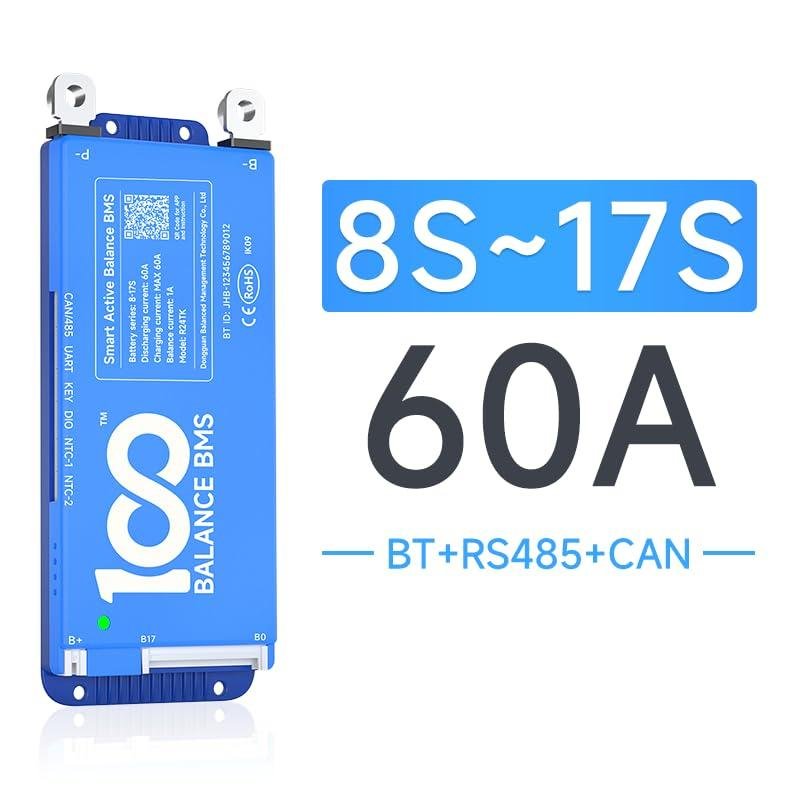

The DALY100 Balance 8S–17S 60A Smart BMS is a reliable and smart Battery Management System designed for lithium battery packs with 8 to 17 cells in series, supporting Li-ion, LiFePO4 (LFP), and LTO chemistries. It delivers up to 60A continuous discharge current, making it suitable for mid-power systems like solar storage, e-bikes, e-scooters, and portable energy systems. The BMS features 1A active cell balancing, ensuring voltage uniformity across all cells, leading to better battery performance and extended life. With integrated Bluetooth, users can monitor real-time data and adjust settings using the 100BALANCE mobile app.
Categories:
Battery Management System (BMS)| Specification | Details |
|---|---|
| Battery Types | Li-ion / LiFePO4 (LFP) / LTO |
| Series Support | 8S to 17S |
| Nominal Voltage Range | ~25.6V to 61.2V (depending on battery type) |
| Continuous Discharge Current | 60A |
| Continuous Charge Current | 30A – 40A (varies by version) |
| Balance Type | Active Balancing |
| Balance Current | Up to 1A per cell |
| Bluetooth | Yes – Built-in (works with 100BALANCE app) |
| Temperature Sensors | 2 NTC thermistors included |
| Voltage Accuracy | ±10mV |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature | -40°C to +125°C |
| Standby Power Consumption | < 50μA |
| Dimensions | Approx. 145mm × 85mm × 25mm (may vary slightly) |
| Protection Functions | Overvoltage, Undervoltage, Overcurrent, Short Circuit, Temperature |
| Firmware Update Support | Yes (depends on model version, via mobile app or PC) |
