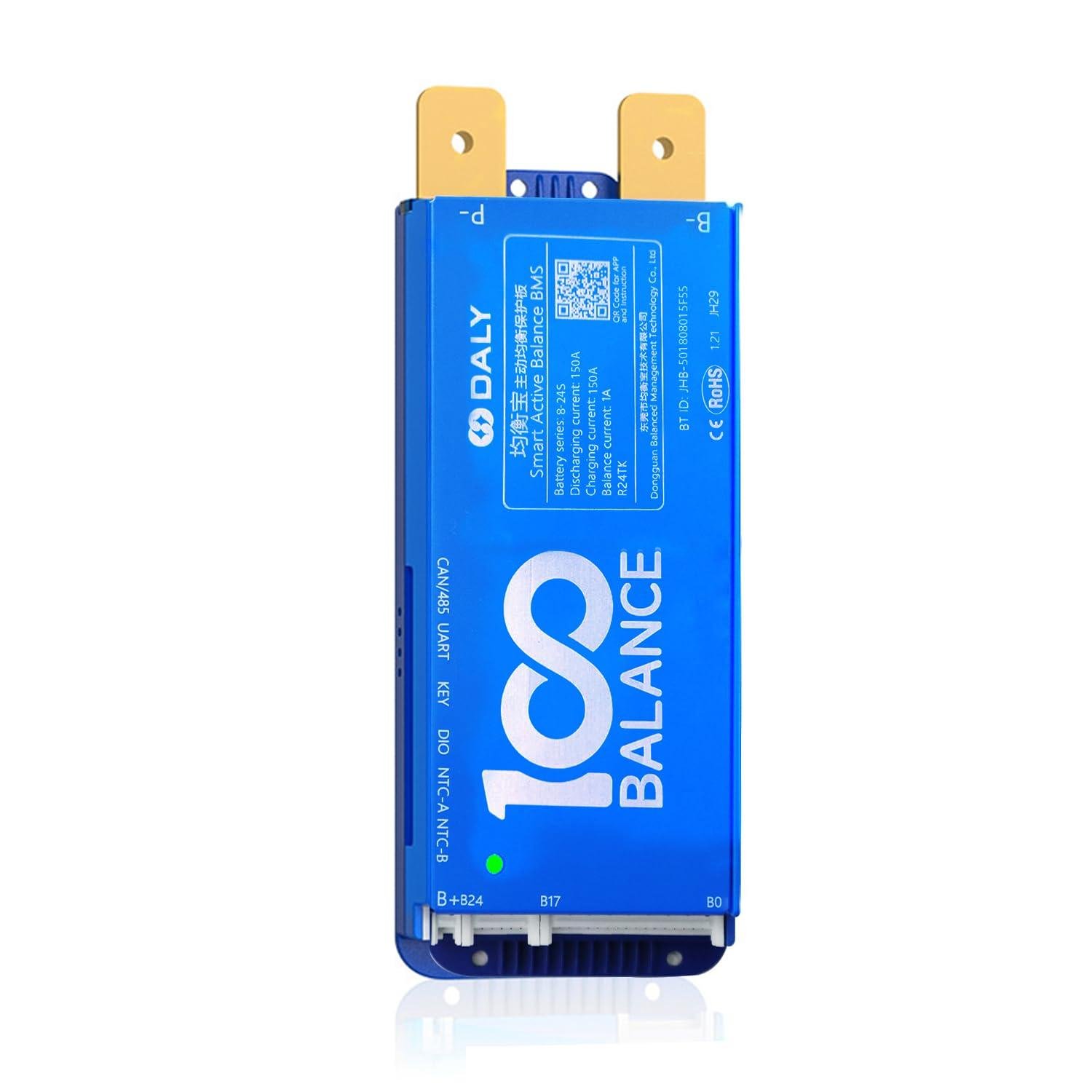

The DALY100 Balance 8S–24S 150A Smart BMS is a high-capacity, intelligent Battery Management System designed for lithium battery packs used in electric vehicles, energy storage systems (ESS), solar inverters, and industrial applications. It supports 8 to 24 cells in series and handles up to 150A continuous discharge current, making it suitable for high-demand power systems. Integrated 1A active balancing ensures voltage consistency between cells, enhancing performance and extending battery life. With built-in Bluetooth connectivity, you can monitor, configure, and manage your battery system in real time via the 100BALANCE mobile app.
Categories:
Battery Management System (BMS)| Parameter | Specification |
|---|---|
| Battery Type | Li-ion, LiFePO4 (LFP), LTO |
| Series Support | 8S to 24S |
| Nominal Voltage Range | 25.6V – 86.4V (depending on chemistry and configuration) |
| Continuous Discharge Current | 150A |
| Charge Current | 50A – 100A (depends on model version) |
| Balance Type | Active Balancing |
| Balance Current | Up to 1A per cell |
| Bluetooth | Integrated (works with 100BALANCE mobile app, Android/iOS) |
| Voltage Measurement Accuracy | ±10mV |
| Temperature Monitoring | Yes (typically 2 NTC sensors) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +125°C |
| Power Consumption (Standby) | < 50μA |
| Dimensions | Approx. 150mm × 85mm × 25mm (varies slightly by version) |
| Protection Features | Overvoltage, Undervoltage, Overcurrent, Short Circuit, Temperature |
| Firmware Update Support | Some versions support OTA updates via app (verify with model) |
