Name: BMS LFP 8S 40A JBD (HP08S001)
SKU: BL-02-BS-4943
Price: 1115 INR
Availability: InStock

0 Reviews

BMS LFP 8S 40A JBD (HP08S001)

In stock

₹1,115.00

(Excluding IGST 18%)

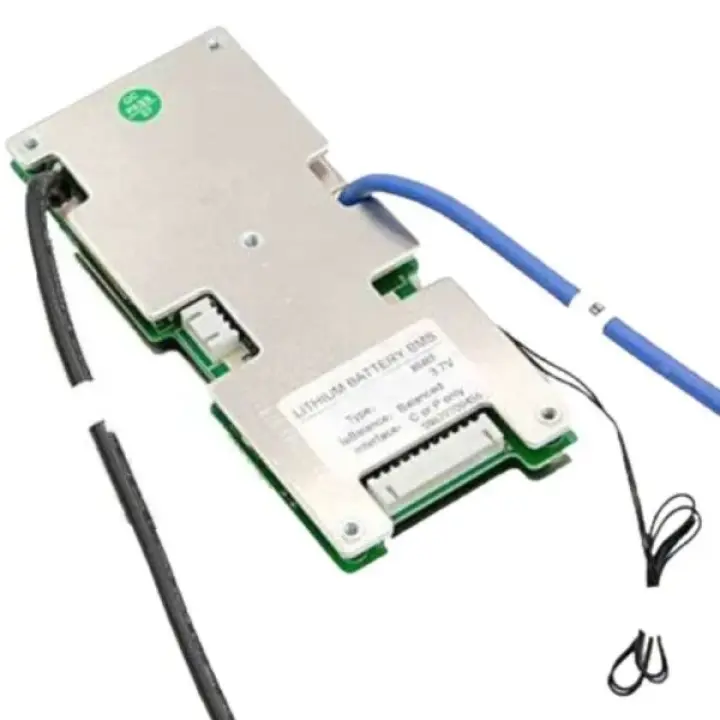

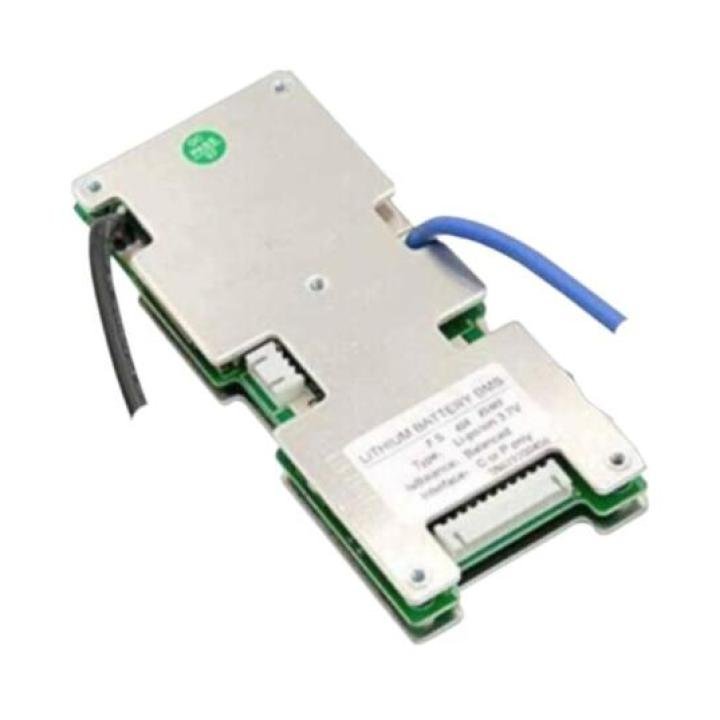

The BMS LFP 8S 40A JBD (HP08S001) (74c4) is a high-quality Battery Management System designed for 8S LiFePO4 batteries. It provides 40A continuous discharge current, ensuring safe, efficient, and reliable performance. With built-in protection features such as overcharge, over-discharge, overcurrent, and short-circuit protection, this BMS enhances battery life and stability. Ideal for electric bikes, solar storage, power packs, and energy storage systems.

SKU:

BL-02-BS-4943

Categories:

JBD BMS

Model: JBD HP08S001 (74c4)
Battery Type: LiFePO4 (Lithium Iron Phosphate)
Series (S): 8S
Nominal Voltage: 25.6V (8 × 3.2V cells)
Charge Voltage: 29.2V
Discharge Current (Continuous): 40A
Peak Current: 80A (short duration)
Balance Function: Yes, cell balancing supported
Communication Interface: UART / RS485 (varies by version)
Protection Features: Overcharge, Over-discharge, Overcurrent, Short-circuit, Temperature protection

Dimensions:

Length: 65 mm
Width: 45 mm
Thickness: 12 mm
Weight: ~70 g
