Name: BMS LFP 4S 200A JBD (ZP04S016)
SKU: BL-02-BS-5602
Price: 3224 INR
Availability: InStock

0 Reviews

BMS LFP 4S 200A JBD (ZP04S016)

In stock

₹3,224.00

(Excluding IGST 18%)

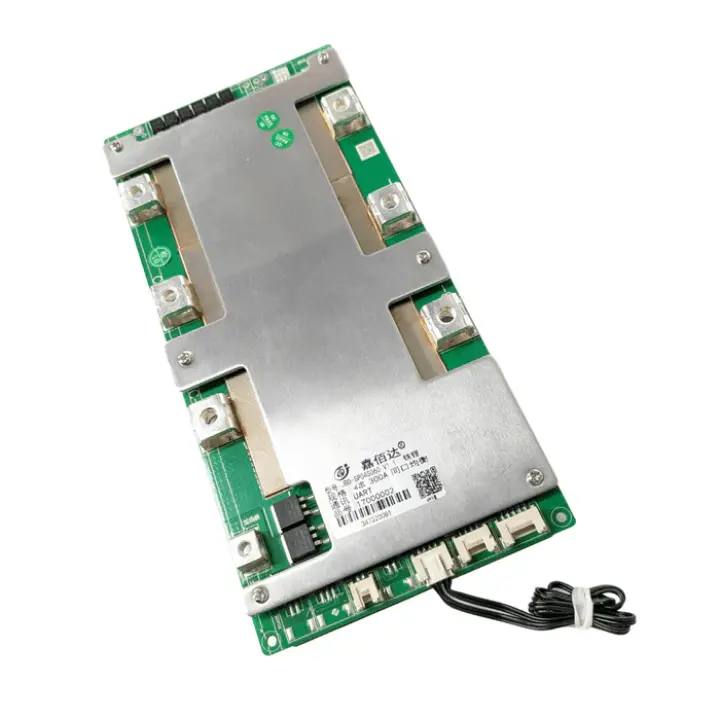

BMS LFP 4S 200A JBD (ZP04S016) (7d3e) is a high-performance Battery Management System designed for 4S LiFePO4 batteries. It supports up to 200A continuous discharge current, ensuring reliable power distribution with advanced protection features such as overcharge, over-discharge, overcurrent, short circuit, and temperature protection. Built with a strong PCB, it offers stability, durability, and safe operation for high-capacity battery packs in EVs, solar storage, and energy systems.

SKU:

BL-02-BS-5602

Categories:

JBD BMS

Model: ZP04S016 (7d3e)
Battery Type: LiFePO4 (LFP)
Configuration: 4S (4 cells in series)
Rated Current: 200A continuous
Peak Current: Up to 400A (short duration)
Operating Voltage: 12V nominal (3.2V per cell)
Charge Voltage: 3.65V per cell (14.6V total)
Balance Type: Passive cell balancing
Protections: Overcharge, Over-discharge, Overcurrent, Short Circuit, Temperature
Communication: UART / RS485 / Bluetooth (optional, model-dependent)
Application: EVs, solar storage, UPS, energy backup

Dimensions:

Length: 140 mm
Width: 80 mm
Thickness: 20 mm
Weight: Approx. 300 g
