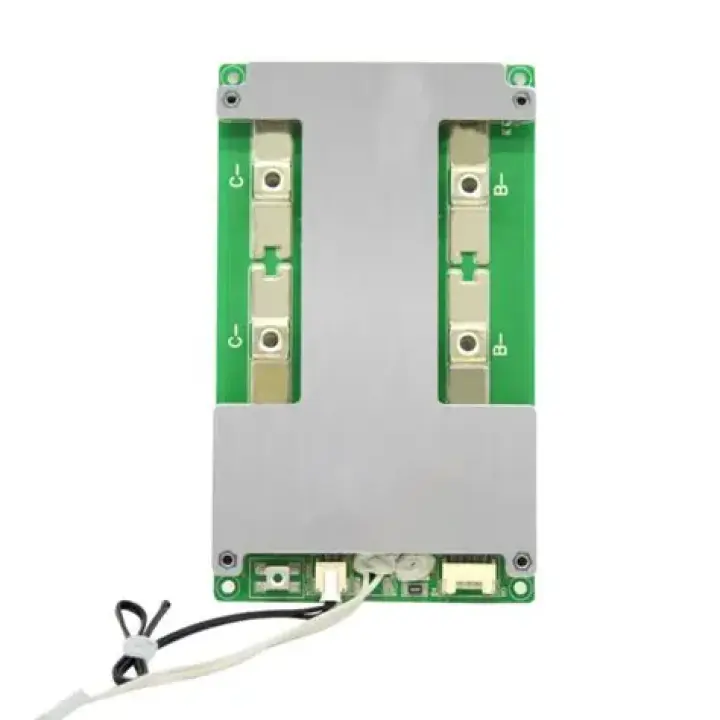

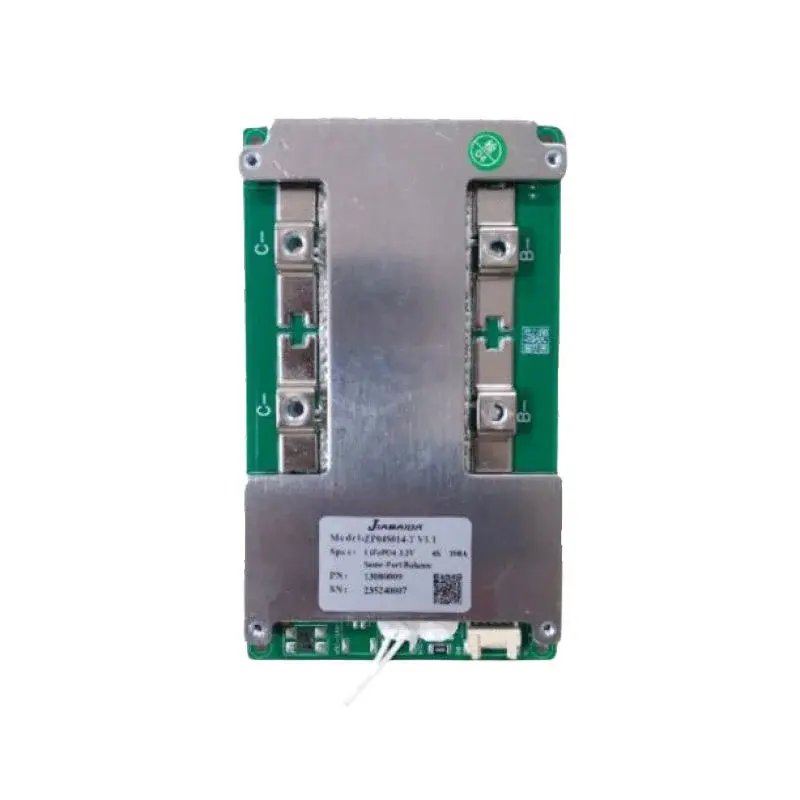

Name: BMS LFP 4S 120A JBD (ZP04S014)
SKU: BL-02-BS-0388
Price: 1508 INR
Availability: InStock

0 Reviews

BMS LFP 4S 120A JBD (ZP04S014)

In stock

₹1,508.00

(Excluding IGST 18%)

The BMS LFP 4S 120A JBD (ZP04S014) (7d3c) is a high-performance Battery Management System designed for 4S LiFePO4 batteries. It provides reliable protection against overcharge, over-discharge, overcurrent, and short-circuit conditions. With Bluetooth/UART/RS485 communication options, it ensures real-time monitoring and smart battery management. Ideal for high-current applications such as solar storage, EVs, UPS, and power backup systems.

SKU:

BL-02-BS-0388

Categories:

JBD BMS

Model: ZP04S014 (7d3c)
Battery Type: LiFePO4 (LFP)
Configuration: 4S (4 cells in series)
Rated Current: 120A
Peak Current: 200A (for few seconds)
Nominal Voltage: 12.8V (4 × 3.2V)
Charge Voltage: 14.6V max
Communication Interface: UART / RS485 / Bluetooth (optional)
Protection Features:
- Overcharge protection
- Over-discharge protection
- Overcurrent & short-circuit protection
- Temperature protection
Balancing: Active/Passive (depending on version)
Operating Temperature: -20°C to +60°C

Dimensions:

Length: 125 mm
Width: 85 mm
Height: 20 mm
Weight: ~220g
