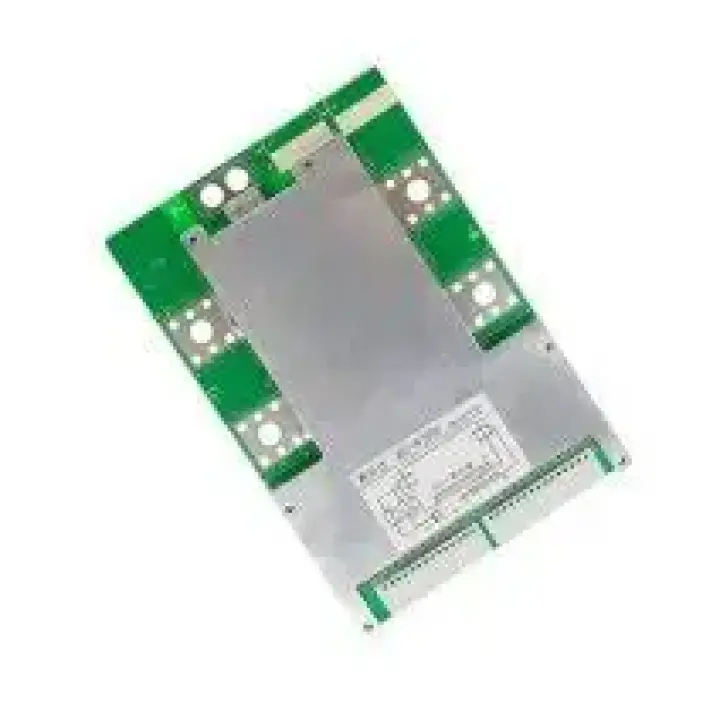

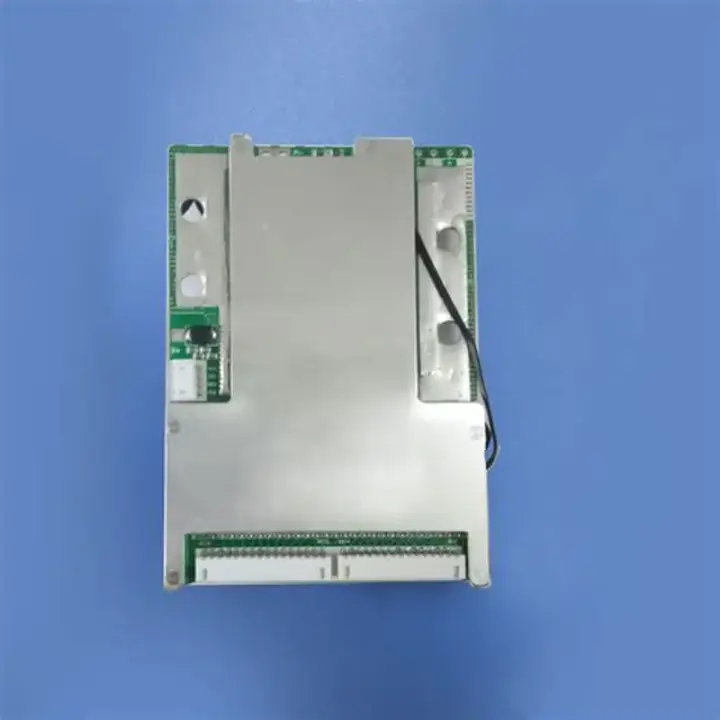

Name: BMS LFP 23S 60A JBD (HP28SA)
SKU: BL-02-BS-06971755794790
Price: 2600 INR
Availability: InStock

0 Reviews

BMS LFP 23S 60A JBD (HP28SA)

In stock

₹2,600.00

(Excluding IGST 18%)

The BMS LFP 23S 60A JBD (HP28SA) (73c1) is a high-performance Battery Management System designed for 23 series LiFePO4 (LFP) battery packs. It provides advanced protection against overcharge, over-discharge, overcurrent, short circuit, and temperature fluctuations, ensuring reliable and safe operation. With a 60A continuous discharge current, it is ideal for solar storage, energy backup, and EV battery packs.

SKU:

BL-02-BS-06971755794790

Categories:

JBD BMS

Battery Type: LiFePO4 (LFP)
Series (S): 23S
Nominal Voltage: ~73.6V (3.2V × 23S)
Charge Voltage: 83.9V (3.65V × 23S)
Discharge Cut-off Voltage: ~57.5V (2.5V × 23S)
Continuous Discharge Current: 60A
Charging Current: Up to 30A
Communication: UART / RS485 / CAN (varies by model)
Balancing Type: Passive balancing
Protection Features:
- Overcharge & Over-discharge protection
- Overcurrent & Short circuit protection
- Temperature protection
Applications: EV packs, solar energy storage, UPS, power backup

📌 Dimensions

Length: 138 mm
Width: 100 mm
Thickness: 20 mm
Weight: ~350 g
