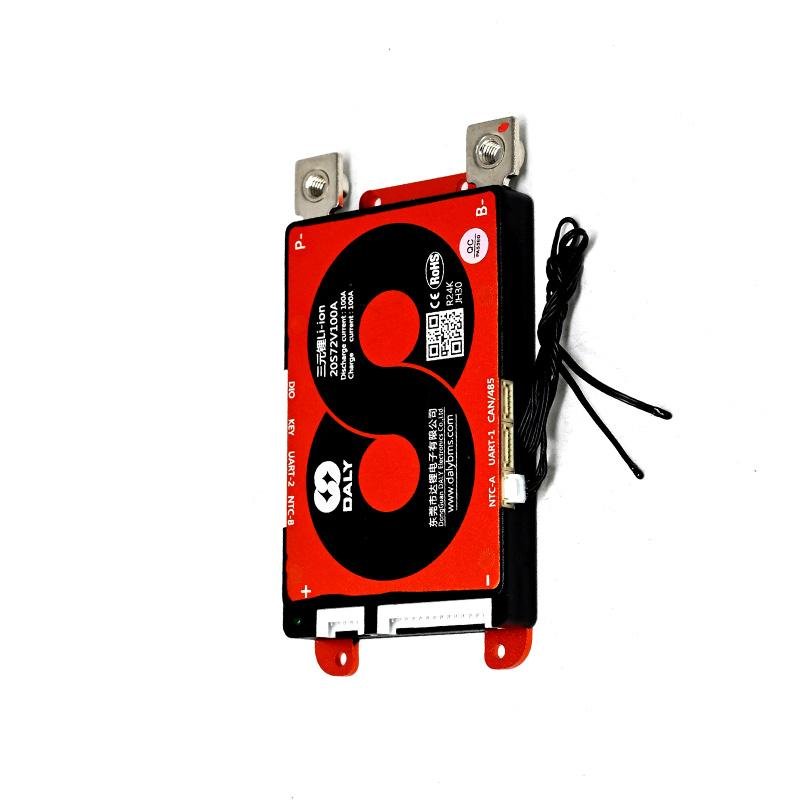

The BMS LFP 20S 100A DALY is a high-performance Battery Management System designed for 64V LiFePO₄ battery packs. It ensures safe charging and discharging by offering advanced protections including overcharge, over-discharge, overcurrent, short circuit, and temperature monitoring. With a continuous discharge current of 100A, it is ideal for high-power applications like EVs, solar storage, and energy backup systems.
Categories:
Battery Management System (BMS)Battery Type: LiFePO₄ (LFP)
Series: 20S (64V nominal)
Continuous Discharge Current: 100A
Peak Discharge Current: 200A (short duration)
Charging Current: Up to 50A (configurable)
Balance Current: 30–60mA (depending on version)
Protections: Overcharge, Over-discharge, Overcurrent, Short Circuit, Temperature Protection, Balancing
Communication Port (optional): UART / RS485 / Bluetooth (depending on model)
Operating Temperature: -20°C to +70°C
Dimensions: ~150mm × 100mm × 25mm (approx., may vary)
Application: Electric vehicles, solar energy storage, UPS, power tools, and high-capacity battery systems.
