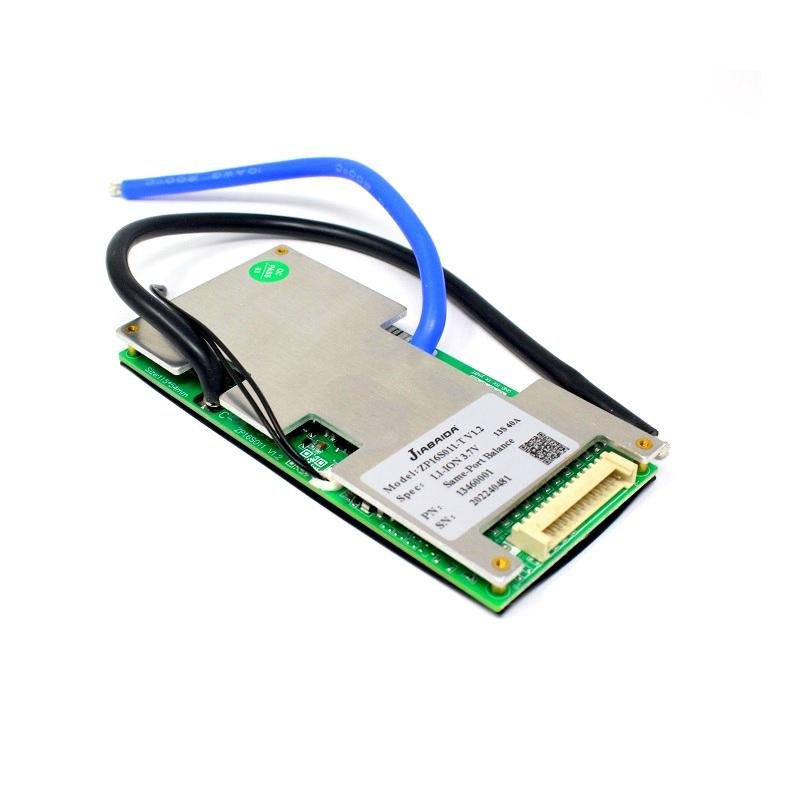

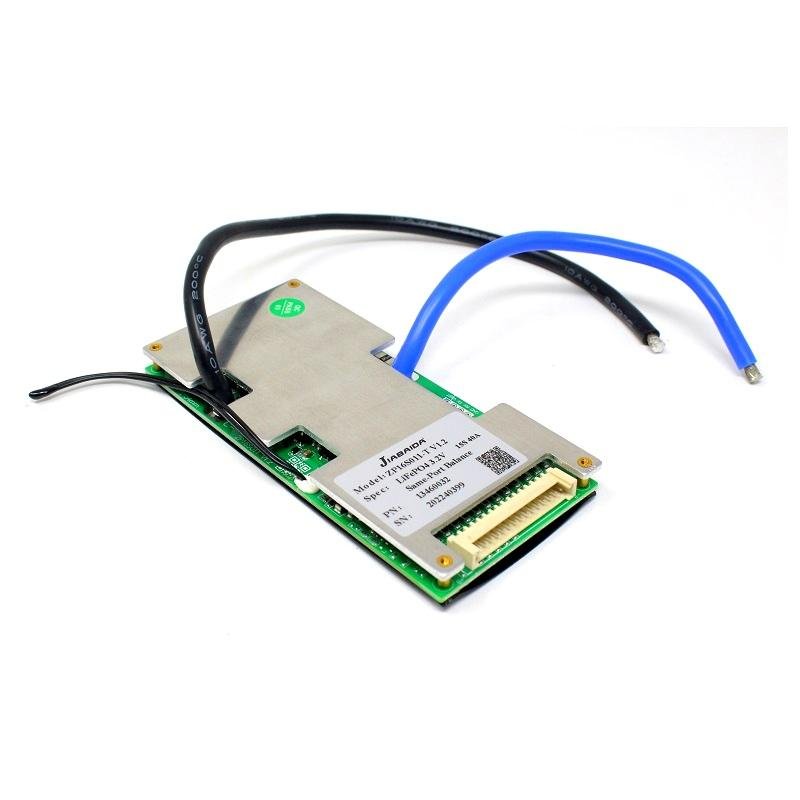

BMS LFP 16S 60A JBD (ZP16S011)

In stock
₹1,885.00
(Excluding IGST 18%)

The BMS LFP 16S 60A JBD (ZP16S011) (56a4) is a high-performance Battery Management System designed for 16-cell LiFePO4 batteries. It provides reliable 60A continuous discharge current with advanced protections including overcharge, over-discharge, overcurrent, short-circuit, and temperature protection. The system supports Bluetooth/UART/RS485/CAN communication for real-time monitoring, ensuring safe and efficient battery operation in applications like solar storage, e-bikes, powerwalls, and EV systems.

Estimated delivery:Feb 08 - Feb 12

SKU:

BL-02-BS-8773

Categories:

JBD BMS
  • Model: JBD ZP16S011 (56a4)
  • Battery Type: LiFePO4 (LFP)
  • Series (S): 16S
  • Nominal Voltage: 51.2V
  • Current Rating: 60A continuous discharge
  • Peak Current: Up to 120A (short duration)
  • Protection Features:
    • Overcharge protection
    • Over-discharge protection
    • Overcurrent protection
    • Short-circuit protection
    • Temperature protection
  • Communication: UART / RS485 / CAN / Bluetooth (optional)
  • Balancing Type: Passive balancing
  • Operating Temperature: -20°C to +70°C

📌 Dimensions:

  • Length: 130 mm
  • Width: 65 mm
  • Thickness: 15 mm
  • Weight: ~200 g
