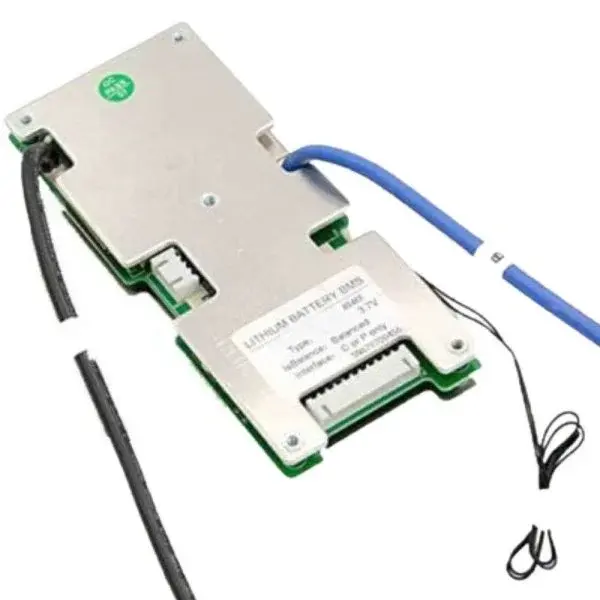

• Model: JBD ZP16S011 (732c)
• Battery Type: LiFePO4 (LFP)
• Configuration: 16S (16 cells in series)
• Rated Discharge Current: 40A
• Rated Charge Current: 20A – 40A (depending on setup)
• Overcharge Protection: Configurable (per cell voltage cutoff)
• Over-discharge Protection: Configurable (per cell cutoff)
• Communication: UART / RS485 / Bluetooth (optional module)
• Balancing Type: Passive balancing
• Balancing Current: ~50–80mA (per cell)
• Protection Features: Over-voltage, under-voltage, over-current, short-circuit, temperature protection
• Operating Voltage: 48V (nominal for 16S LFP packs)
• Application: ESS, solar systems, e-bikes, UPS, power tools

📌 Dimensions:

• Length: ~140 mm
• Width: ~65 mm
• Thickness: ~15 mm
• Weight: ~220g
