BMS LFP 15S 60A JBD (ZP16S011) (563f)

In stock
₹1,845.00
(Excluding IGST 18%)

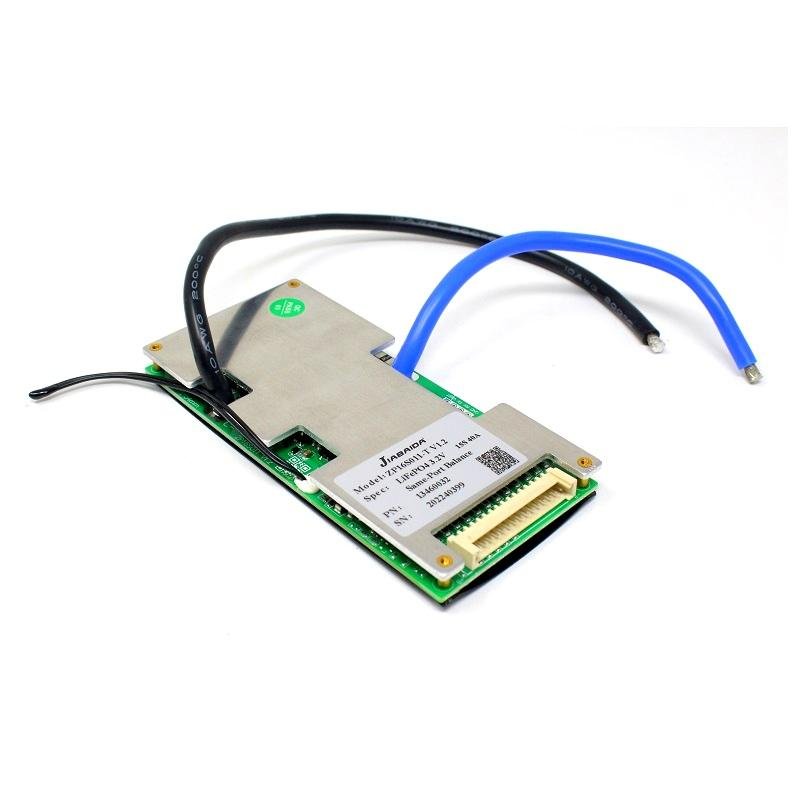

The BMS LFP 15S 60A JBD (ZP16S011) (563f) is a high-performance Battery Management System designed for 15S LiFePO4 battery packs. It supports up to 60A continuous discharge and offers comprehensive protection features, including overcharge, over-discharge, overcurrent, short circuit, and temperature protection. Equipped with cell balancing, it ensures extended battery life and stable performance. Compact and reliable, it is ideal for e-bikes, solar systems, UPS, and energy storage applications.

Estimated delivery:Feb 08 - Feb 12

SKU:

BL-02-BS-5067

Categories:

JBD BMS
  • Model: JBD (ZP16S011) (563f)
  • Battery Type: LiFePO4 (LFP)
  • Series (S): 15S
  • Rated Current: 60A
  • Peak Current: Up to 120A (for few seconds, depending on configuration)
  • Voltage Range: ~48V to 55.5V (15S LFP system)
  • Balance Function: Yes, active/passive balancing support
  • Protection Features:
    • Overcharge Protection
    • Over-discharge Protection
    • Overcurrent Protection
    • Short Circuit Protection
    • Temperature Protection

📏 Dimensions:

  • Length: 140 mm
  • Width: 66 mm
  • Thickness: 20 mm
  • Weight: ~180g (approx.)
