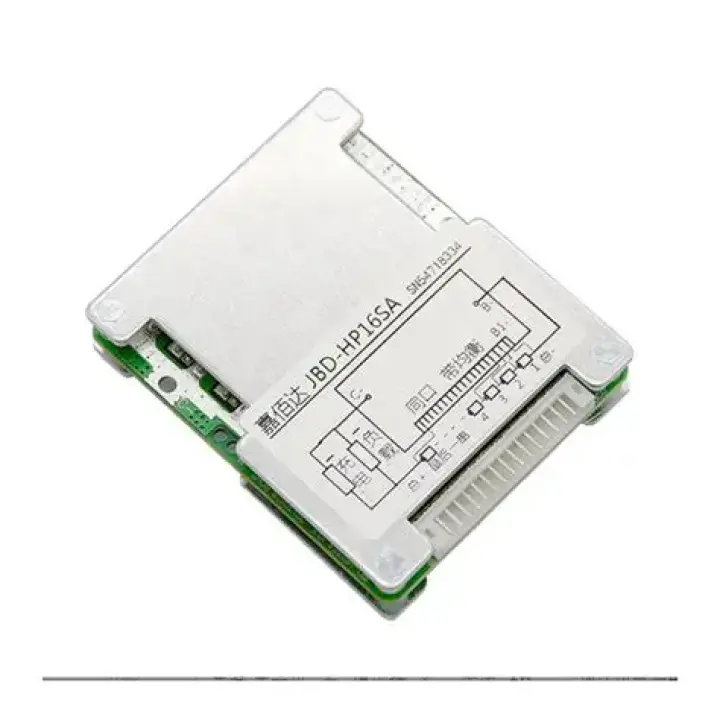

Name: BMS LFP 11S 20A JBD (HP16SA)
SKU: BL-02-BS-7568
Price: 1400 INR
Availability: InStock

0 Reviews

BMS LFP 11S 20A JBD (HP16SA)

In stock

₹1,400.00

(Excluding IGST 18%)

The BMS LFP 11S 20A JBD (HP16SA) (5655) is a high-performance Battery Management System designed for 11S LiFePO4 (Lithium Iron Phosphate) battery packs. It ensures safe and efficient battery operation with features like overcharge, over-discharge, overcurrent, and short-circuit protection. Built with advanced balancing technology, it enhances battery cycle life and performance. Suitable for small to medium battery packs used in energy storage, solar systems, and light EVs.

SKU:

BL-02-BS-7568

Categories:

JBD BMS

Model: HP16SA (5655)
Battery Type: LiFePO4 (LFP)
Series (S): 11S
Rated Current: 20A
Discharge Current: 20A continuous
Charge Voltage: 3.65V × 11S = 40.15V (Max)
Balance Current: 30–60mA (typical passive balancing)
Protection Features:
- Overcharge Protection
- Over-discharge Protection
- Overcurrent & Short Circuit Protection
- Temperature Protection
Communication: UART / RS485 (optional depending on version)
Applications: Solar storage, UPS, e-bikes, light EVs, DIY power systems

📌 Dimensions:

Length: 65 mm
Width: 50 mm
Height: 10 mm
Weight: ~65g
