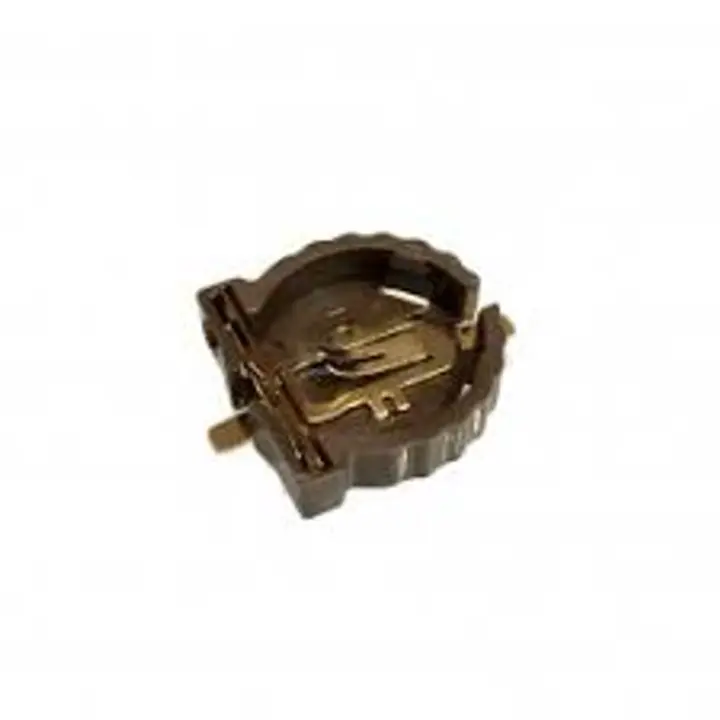

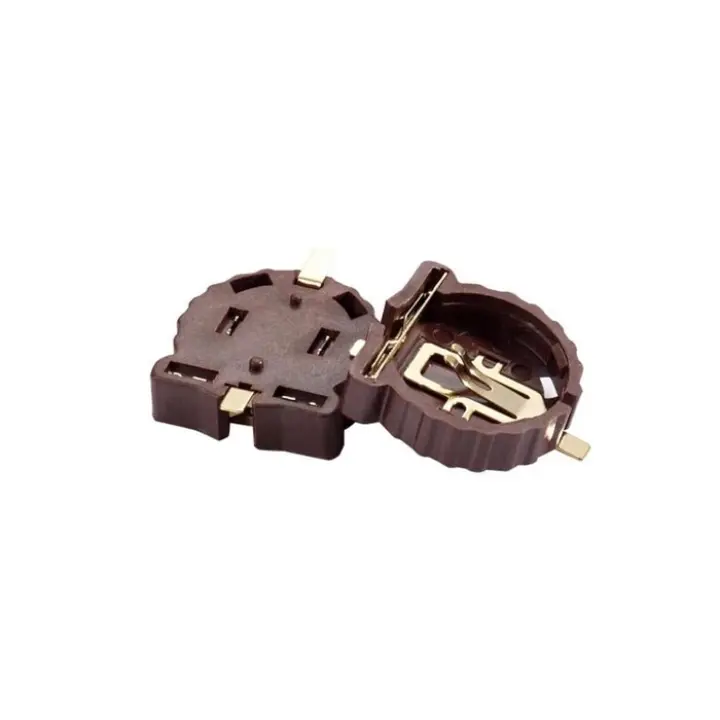

The 1220 Coin Cell Battery Holder – SMD Type is a compact, surface-mount battery holder compatible with standard CR1220 lithium batteries (12mm diameter, 2.0mm thickness). It features reliable spring-loaded metal contacts for a secure electrical connection, making it ideal for space-constrained, portable, or battery-backed applications.

Manufactured using high-temperature-resistant plastics and corrosion-resistant metal contacts, this holder supports automated SMD reflow soldering processes. The design ensures quick and easy battery replacement while maintaining a strong mechanical hold during vibration or movement.

🔧 Key Features:

• ✅ Compatible Battery: CR1220 (12.0 mm x 2.0 mm)
• ✅ Mounting Type: SMD (Surface-Mount Device)
• ✅ Contact Material: Phosphor bronze or stainless steel (tin/gold plated)
• ✅ Operating Temp Range: –20°C to +60°C (typical)
• ✅ Durable Construction: High-temp thermoplastic housing
• ✅ Applications: RTC backup, memory hold, IoT devices, wearables, medical sensors

🧰 Typical Applications:

• Real-Time Clock (RTC) Modules
• Remote Controls & Key Fobs
• Wearables & Smart Tags
• Embedded Systems with Battery Backup
• Small IoT Devices and Prototypes

📦 Package Includes:

• 1 x CR1220 Coin Cell SMD Battery Holder
